SWIT CIMO-98S 98Wh USB-C Slim Cine V-mount Battery

The SWIT CIMO-98S battery from the CIMO series provides professional users with a compact and high-performance power solution for demanding cine cameras and camera accessories. Featuring a fly-friendly capacity of 98Wh (6.8Ah) powered by eight ternary lithium cells, this V-mount battery is ideally suited for mobile use on set and video productions.

The integrated ternary lithium cells offer high energy density in a slim housing, alongside excellent low-temperature performance capable of supplying reliable power in environments down to -20°C. Even at 1% remaining capacity, the battery provides a constant high load output of 150W (12A) with a peak load capability of up to 200W.

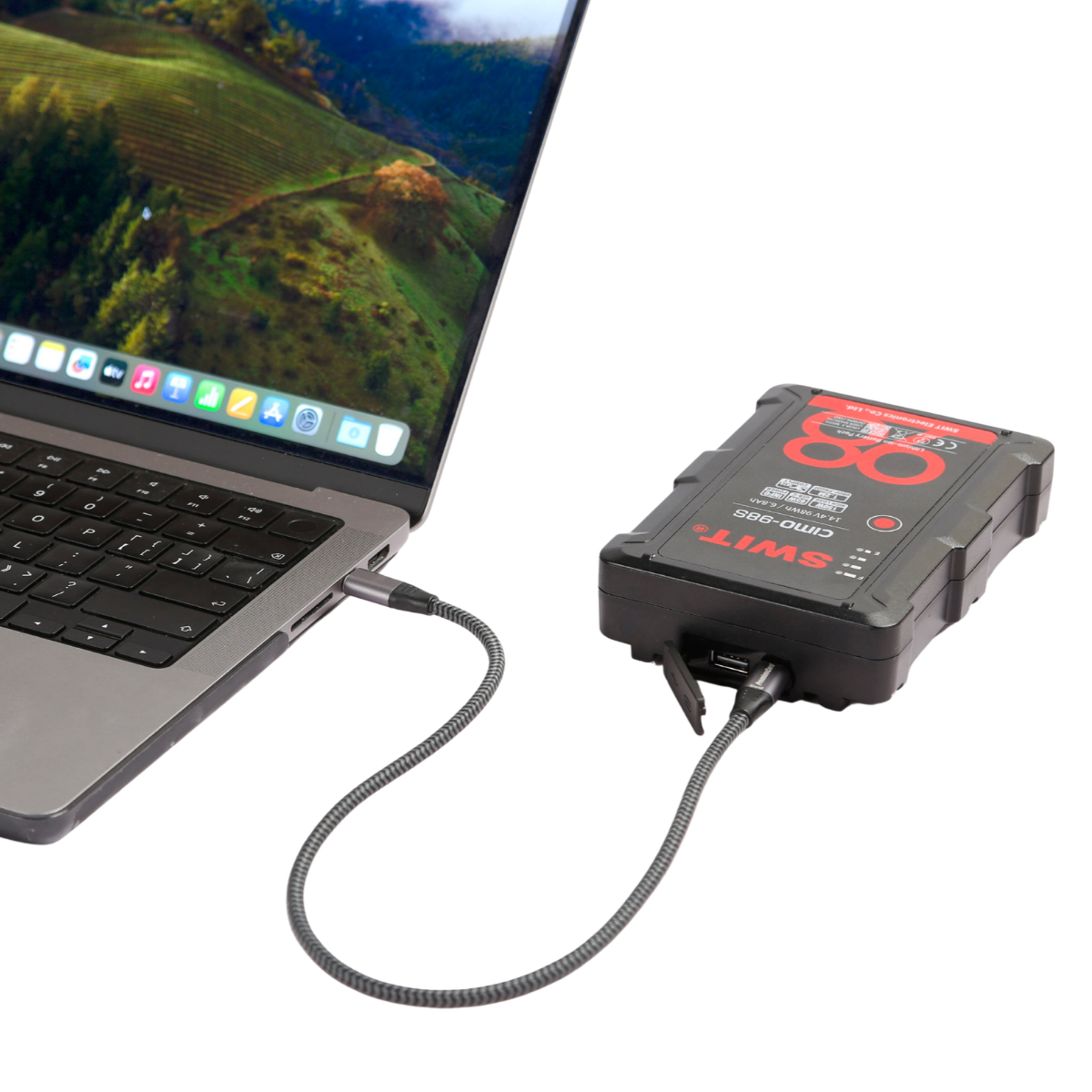

To power external equipment, the unit includes two D-Tap outputs (150W total) and one USB-A port (18W). Additionally, a universal USB-C port outputs up to 65W (supporting BC1.2, QC2.0/3.0, FCP, SCP, and PD2.0/3.0) to charge laptops and smart devices. Using a compatible USB-C PD charger (≥45W), the battery recharges fully in approximately 2.5 hours.

Designed with a dual housing construction, the CIMO-98S withstands drops from up to 1.2 meters at any angle. A rear LED torch assists with locating the V-mount plate in dark environments and turns off automatically after 60 seconds. Comprehensive protection circuits guard against overcharging, overdischarging, overcurrent, and extreme temperatures.

Technical Specifications

Battery Plate: V-mount
Nominal Voltage: 14.4V
Capacity: 98Wh, 6.8Ah
Power Load: 150W, 12A constant; 200W peak
Power IN & OUT:

• Main Electrodes: 150W / 12A output, 16.8V / 4A (max.) input
• 2× D-Tap: 150W / 12A output (single or combined); charging input via D-Tap: 16.8V / 4A (max.)
• USB-A: 5V / 9V (max.) 2A output (18W)
• USB-C Output: 65W (5V / 9V / 12V / 15V / 20V, max. 3.25A); supports BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP
• USB-C Charging Input: Requires USB-C to C charger with PD2.0/3.0 (≥45W); USB-A to C charger supports 5V only

Operating Temperature:

• Charging: 0°C to 40°C
• Discharging: -20°C to 50°C

Dimensions and Weight:

• Net Weight (without packaging): 0.642kg
• Product Dimensions (without packaging): 144 × 100 × 35mm
• Gross Weight (with packaging): 0.68kg
• Package Dimensions: 151 × 106 × 42mm
