SWIT CIMO-160S 160Wh USB-C OLED info Cine V-mount Battery

The Swit CIMO-160S is a professional cine-grade V-mount battery engineered for the high-power demands of film, TV, and video productions. Built with 16 high-density ternary lithium cells, it provides 14.4V nominal voltage and a flight-friendly 160Wh (11.1Ah) capacity in a compact form factor. The advanced cell technology ensures exceptional performance in extreme conditions, maintaining reliable power output down to -20°C.

Designed for modern cinema cameras and demanding accessories, the CIMO-160S delivers a constant high load of at least 200W/16A even at 1% capacity, with peak loads reaching up to 270W. The high-load cells protect overall pack health and ensure long service life during prolonged heavy-duty operation.

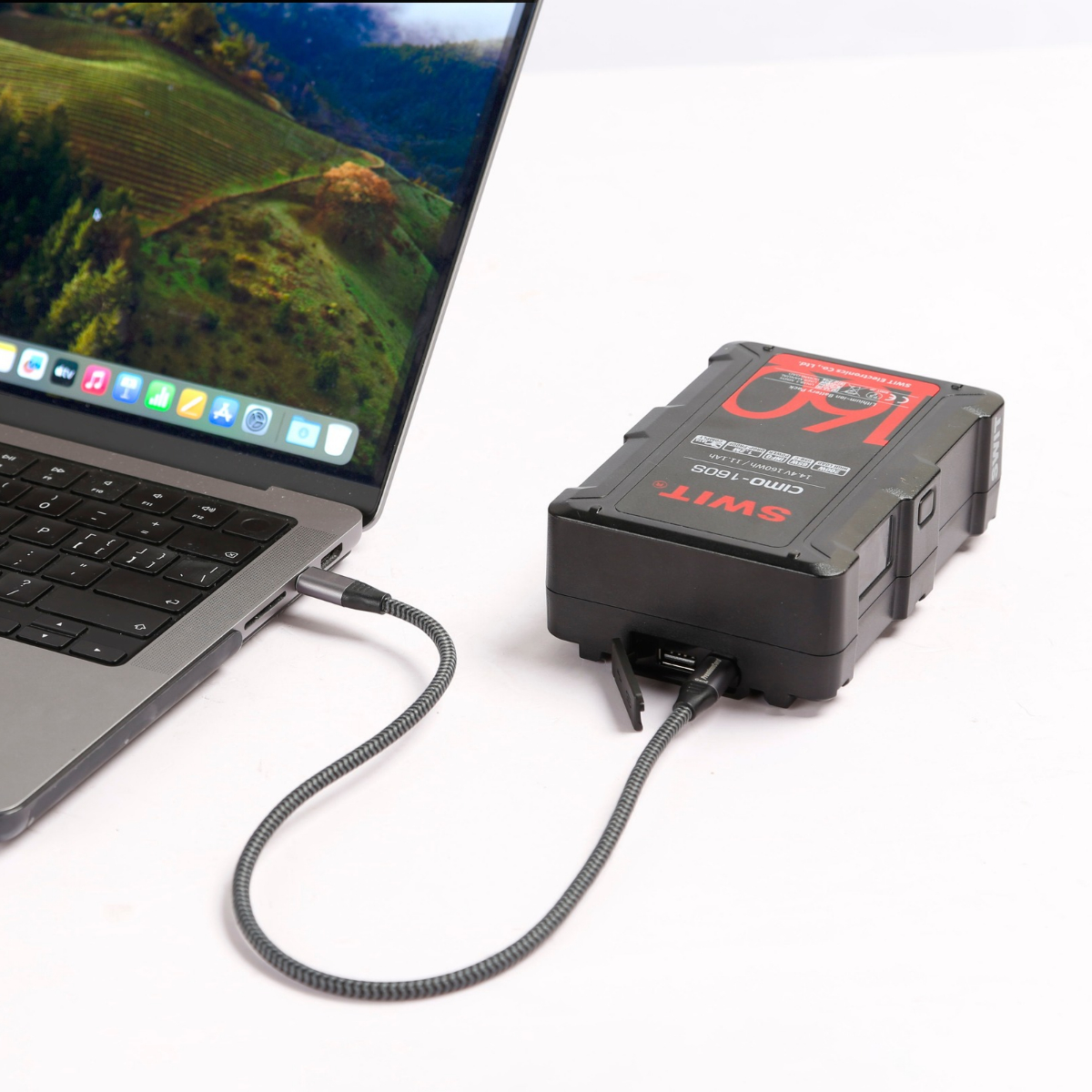

Connectivity includes two D-tap ports providing 200W total output and charging input, one USB-A output (5V/9V, 2A, 18W), and a versatile USB-C port supporting 65W output and 60W charging input. Featuring universal compatibility (BC1.2, QC2.0/3.0, FCP, SCP, PD2.0/3.0), the USB-C port powers laptops and on-camera devices directly. The battery can also be recharged in 4 hours using a USB-C PD charger of 60W or higher (chargers below 60W are not supported).

When paired with SWIT PC-P461S, MATRIX-S8, or S-3812S fast chargers, the battery supports 100W/6A high-speed charging. It charges from 0 to 80% in 1.5 hours and completes a full charge in 2.5 hours without compromising cell life.

An integrated OLED display shows real-time percentage and remaining runtime. A long press of the check button reveals cycle counts and overall battery health. For low-light set operations, a double click activates a rear LED work light to assist with V-mount plate mounting, which shuts off automatically after 60 seconds. The drop-proof dual housing withstands drops from 1.2 meters at any angle. Comprehensive protection circuits guard against overcharging, deep discharge, and temperature extremes.

Technical Specifications

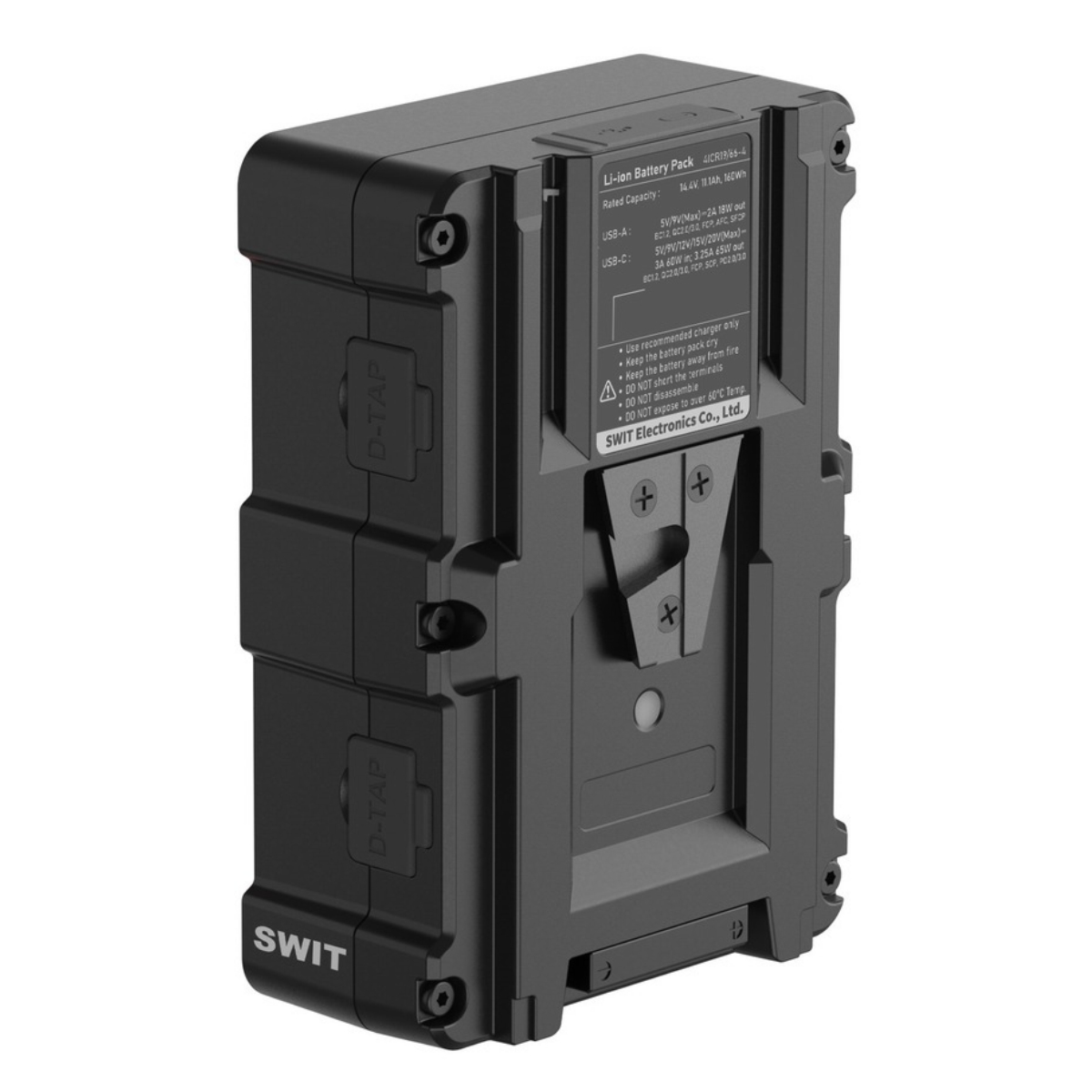

• Battery Plate: V-mount
• Nominal Voltage: 14.4V
• Capacity: 160Wh, 11.1Ah
• Power Load: 200W, 16A constant; 270W peak
• Power In & Out:
  • Electrodes: 200W, 16A out; 16.8V, 8A (Max.) in
  • 2x D-Tap: Single D-Tap: 200W, 16A out; Dual D-Tap: 200W, 16A total out; D-Tap charging: 16.8V, 8A (Max.) in
  • USB-A: 5V/9V (Max.), 2A out, 18W
  • USB-C Out: 65W (5V/9V/12V/15V/20V (Max.) = 3.25A); Protocols: BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP
  • USB-C In: USB-C to C charger requires PD2.0/3.0, power ≥ 60W; USB-A to C charger: 5V only
• Charging Temperature: 0°C to 40°C
• Discharging Temperature: -20°C to 50°C
• Net Weight (without packaging): 1.085kg
• Product Dimensions (without packaging): 144 × 100 × 51mm
• Gross Weight (with packaging): 1.13kg
• Package Dimensions: 151 × 106 × 57mm
