SWIT PB-S220S V-Mount Akku 220Wh
Product information "SWIT PB-S220S V-Mount Akku 220Wh "
The Swit PB-S220S is a compact, square-shaped 220Wh V-mount battery designed especially for modern cine cameras. Its shorter housing perfectly matches most cine camera bodies, including popular SONY and RED models, providing a well-balanced camera setup.
The built-in OLED display shows highly accurate remaining runtime during both charging and discharging. In addition, power information can be displayed directly in the viewfinder of compatible SONY and RED cameras.
With at least 200W / 16A constant load, the PB-S220S reliably powers even demanding camera rigs. Four D-Tap output ports and one 5V/2A USB port offer ample connectivity for on-camera monitors, wireless video systems and other accessories. A key advantage: all four D-Tap sockets also support charging input. Thanks to 6A fast charging, the battery is quickly ready for the next take. Multiple circuit protections ensure safe operation on set.
Key Features
- Compact, square design for cine cameras
- 220Wh high-capacity V-mount battery (14.4V)
- At least 200W / 16A constant load
- 4× D-Tap outputs for accessories + charging input support
- 1× USB 5V/2A power output for mobile devices
- 6A super fast charging capability
- OLED display with accurate remaining runtime
- Power info display supported on both SONY & RED cameras
- Multiple circuit protections for maximum safety
Technical Data
-

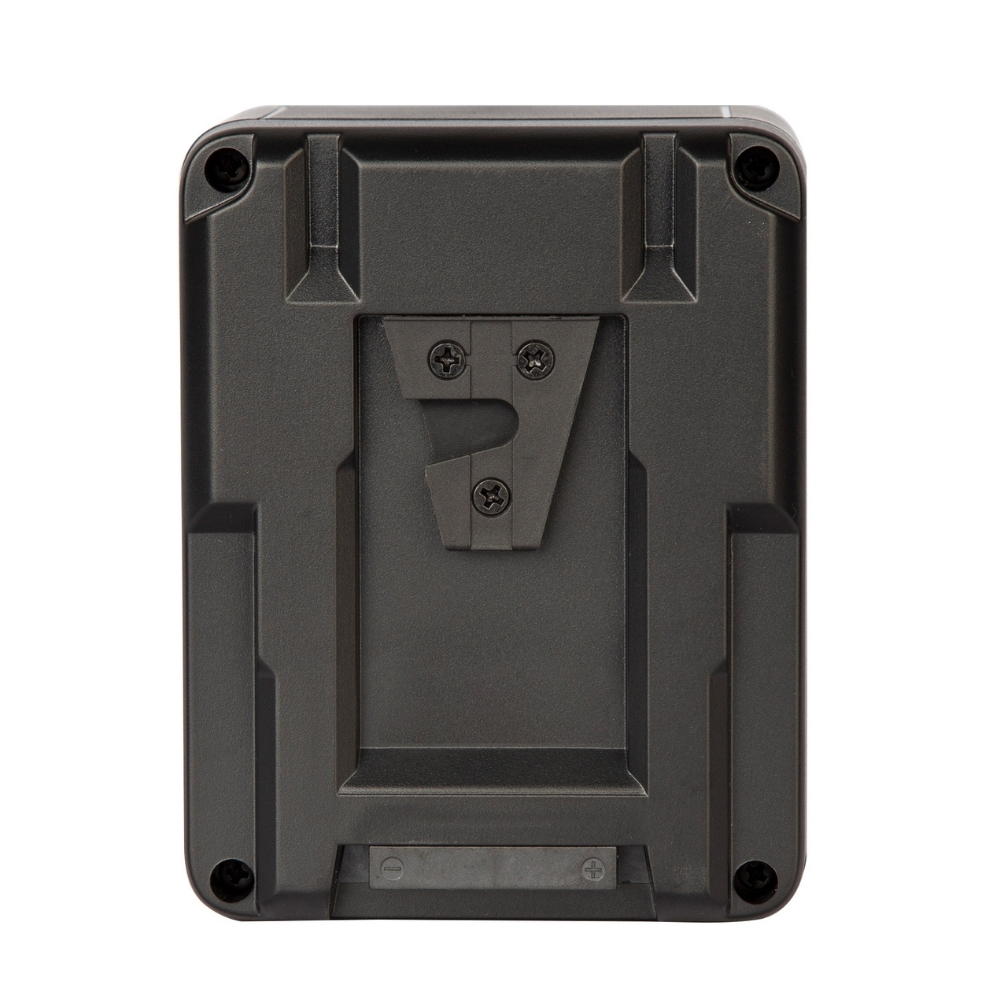

Battery plate: V-mount
-
Nominal voltage: 14.4V
-
Capacity: 220Wh, 15.3Ah
-
Max output:
- Total: 200W
- Electrodes: 200W, 16A
- USB: 10W, 5V/2A
- D-Tap: 120W / 10A
-
Connections:
- D-Tap sockets: 4
- USB sockets: 1
-
Dimensions: 121 × 95 × 96 mm
-
Temperature range:
- Charging temperature: 0–40°C
- Discharging temperature: -20°C to 50°C
(Capacity and max load may decrease when operating below 0°.)
-
Net weight:
- Net: 1.44 kg
- With package: 1.55 kg
-
Max charging current: 6A
