Aputure NOVA 9º 2x1 Rolling Hard Case Kit
Product information "Aputure NOVA 9º 2x1 Rolling Hard Case Kit"

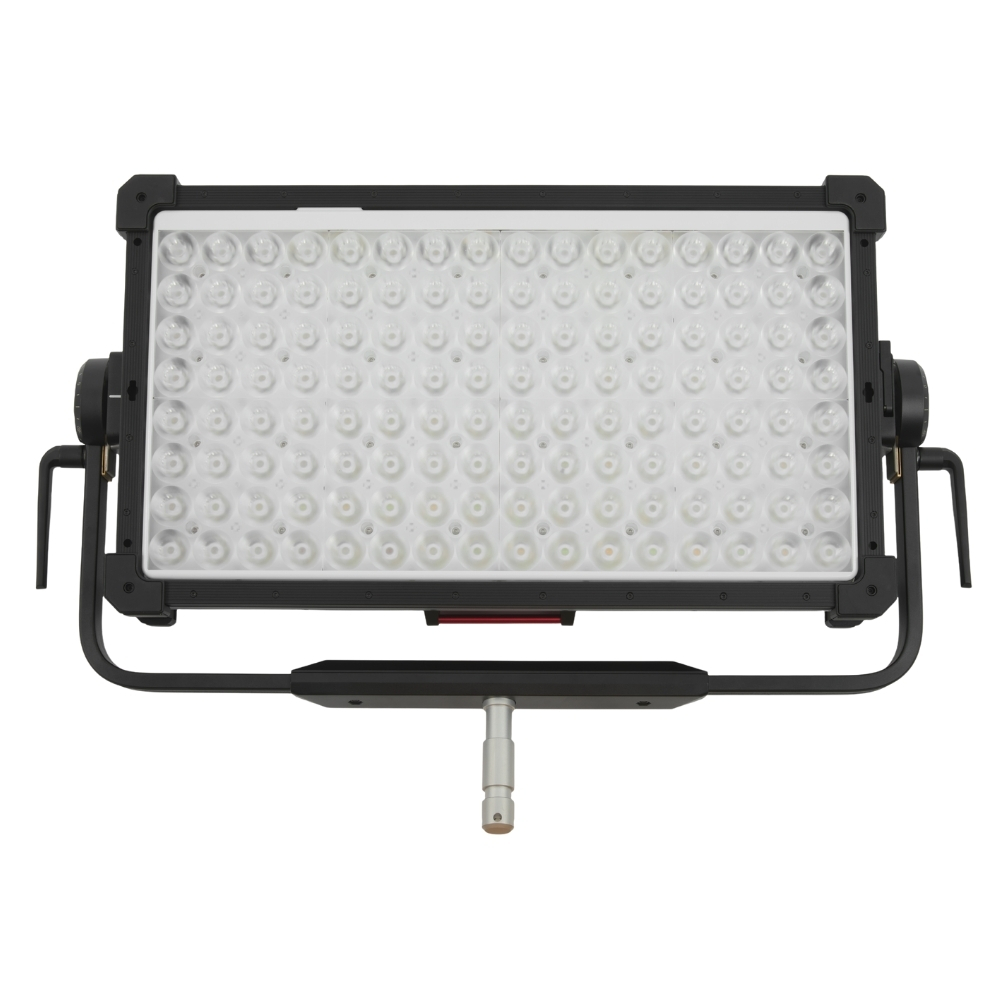

The Aputure NOVA 9º 2x1 is a high-output, lensed LED panel designed to bring the intensity and precision of natural sunlight into a compact, portable fixture. Its ultra-tight 9º native beam angle delivers a powerful, focused shaft of light with crisp, hard shadows and excellent long-throw performance—perfect for simulating sunlight through windows, bouncing into reflectors, or creating defined specular highlights across large sets.
At its core, the BLAIR color engine combines Blue, Lime, Amber, Indigo, and Red diodes for outstanding spectral reproduction and ultra-high color accuracy (CRI/TLCI ≥95). With an extended 1,800K–20,000K CCT range and full ±G green-magenta adjustment (ASC MITC), the NOVA 9º 2x1 excels at matching ambient sources, enhancing skin tones, and delivering sunlike color rendering with extended red response.
Even when used with the included flat diffusion panel, the fixture retains exceptional punch while providing smooth, even luminance for controlled softness. The NOVA 9º 2x1 is engineered for scalability: multiple fixtures can be stacked in multi-light yokes to create large, directional arrays capable of competing with daylight at 10 meters and beyond.

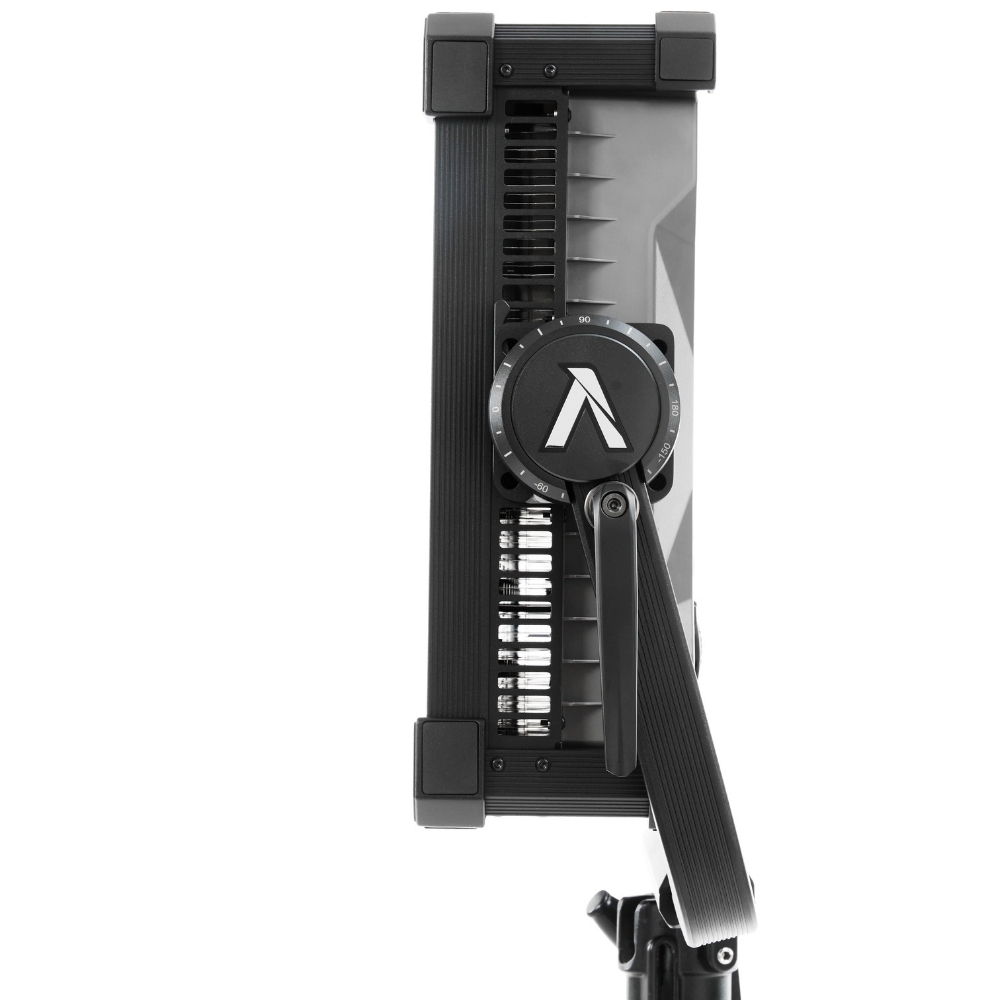

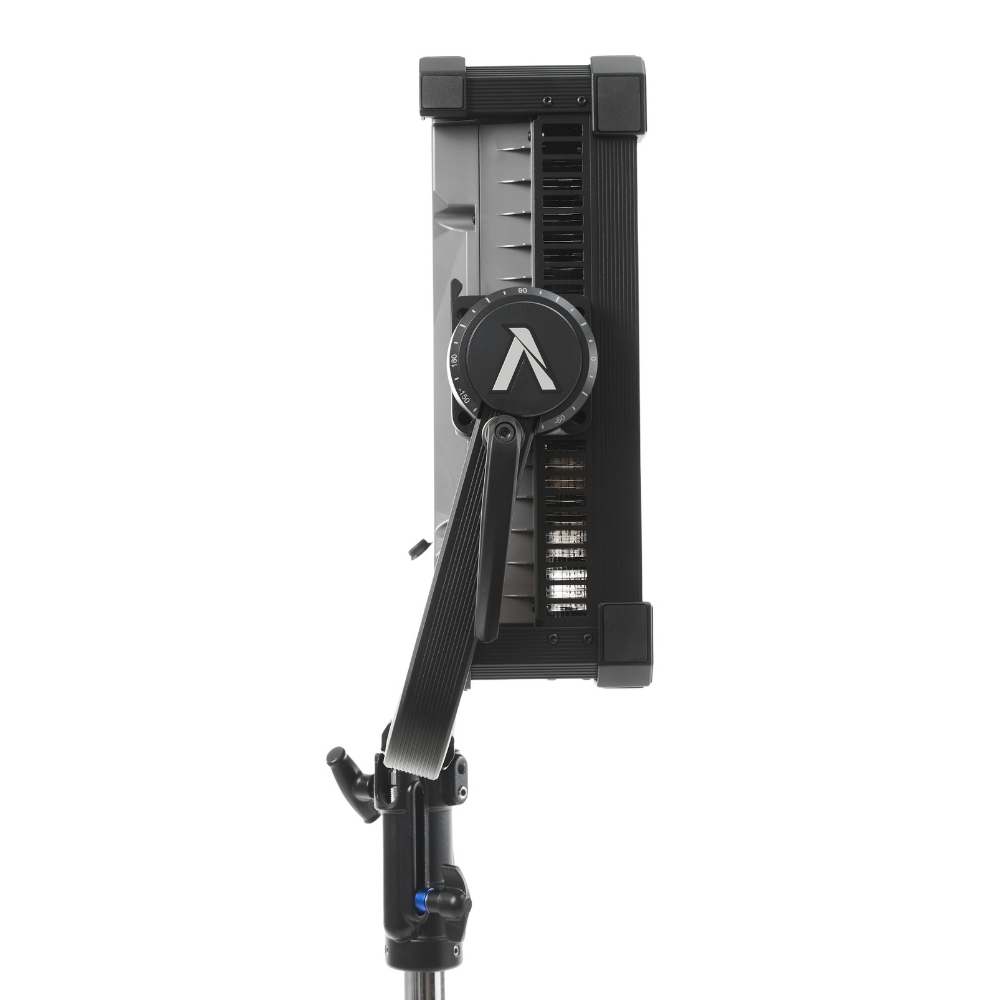

Sharing the same dimensions and QuickClip front-mounting ecosystem as the NOVA II 2x1, it offers full accessory compatibility and a removable yoke with junior pin for flexible rigging in studios, truss grids, or on location.
With IP65 weather resistance, 0.1–100% stepless dimming, dual output modes (Max / Constant), four fan modes, and professional control protocols including Sidus Link®, Sidus Link Pro®, 16-bit DMX512, CRMX, and Art-Net/sACN, the NOVA 9º 2x1 meets modern production demands. Combined with its strong output-to-weight ratio and robust housing, it is purpose-built for cinematographers and gaffers who need the narrowest, most color-accurate beam in a portable LED panel form factor—whether used as a single source or in a massive light wall array.
Key Features
- 650W lensed LED panel with outstanding output
- 9º native beam angle for long-throw, hard light and tight control
- BLAIR chipset (Blue, Lime, Amber, Indigo, Red) for rich spectral response
- CCT range 1,800K–20,000K with full ±G green/magenta correction (ASC MITC)
- Bare bulb output: 66,200 lux @ 3 m, 5600K
- With flat diffuser: 2,423 lux @ 3 m, 5600K
- Ultra-high color accuracy: CRI ≥95, TLCI ≥95, CQS ≥96, SSI 89/86, TM-30 Rf 95, Rg 100
- Stackable 3-light yoke arrays to compete with natural daylight
- 4 horizontal pixel zones for smooth, versatile pixel effects
- IP65 weather-resistant construction for indoor and outdoor use
- 0.1–100% stepless dimming, 4 dimming curves & 15 built-in effects
- Pro control: Sidus Link, Sidus Link Pro, DMX, CRMX, Art-Net/sACN
Technical Specifications
-
LED Chipset: BLAIR
-
CCT Range: 1,800K – 20,000K
-
CRI: ≥95
-
TLCI: ≥95
-
SSI (Tungsten): 89
-
SSI (D56): 86
-
TM-30 RF (Average): 95
-
TM-30 RG (Average): 100
-
Max Power Consumption: 800W
-
Max Power Output: 650W
-
Weather Resistance Rating: IP65
-
Native Beam Angle: 9º
-
Included Flat Diffuser Beam Angle: 80º
-
Pixel Count: 4 pixels (horizontal)
-
Bare Bulb Output: 66,200 lux @ 3 m, 5600K
-
Flat Diffuser Output: 2,423 lux @ 3 m, 5600K
-
AC Operating Voltage: 100V ~ 240V / 50–60 Hz
-
Operating Temperature: -20ºC ~ 50ºC / -4ºF ~ 122ºF
-
Storage Temperature: -40ºC ~ 80ºC / -40ºF ~ 176ºF
-
Control Methods:
- Onboard
- Sidus Link
- Sidus Link Pro
- DMX512
- CRMX
- Art-Net/sACN
- RDM
-

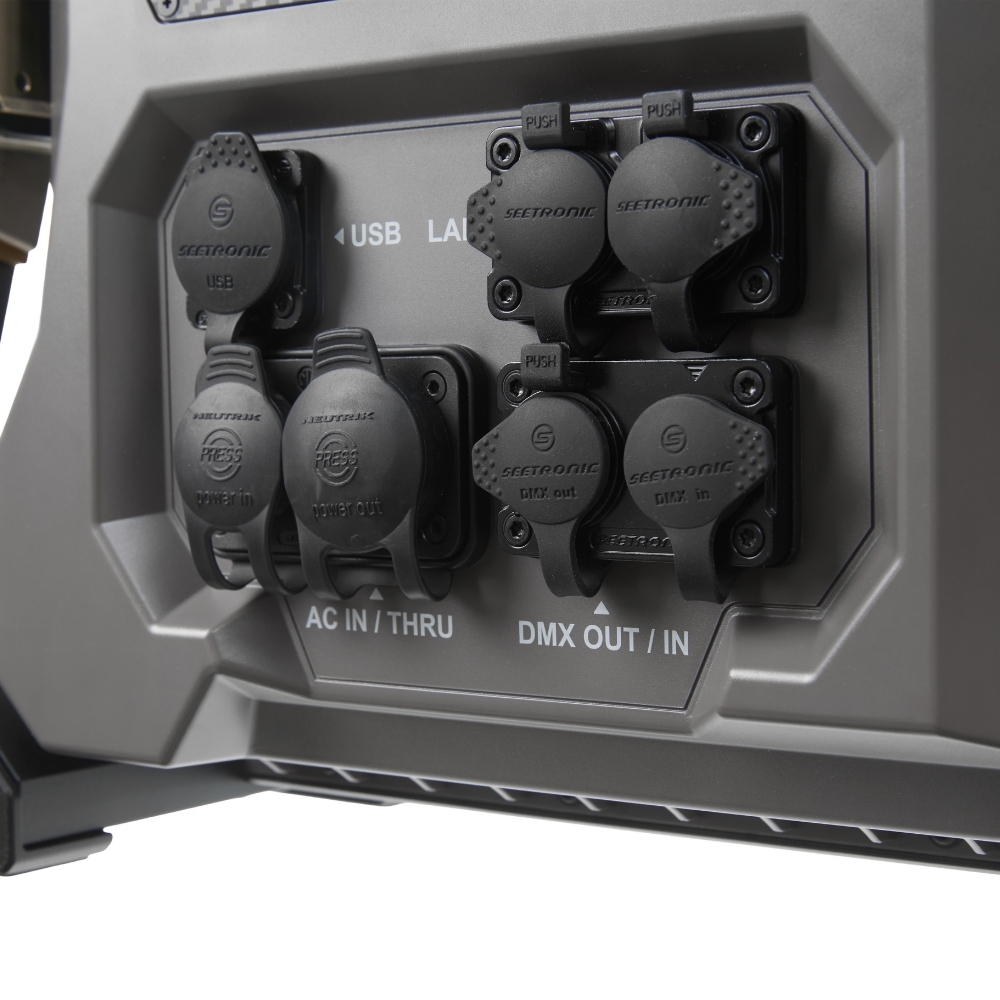

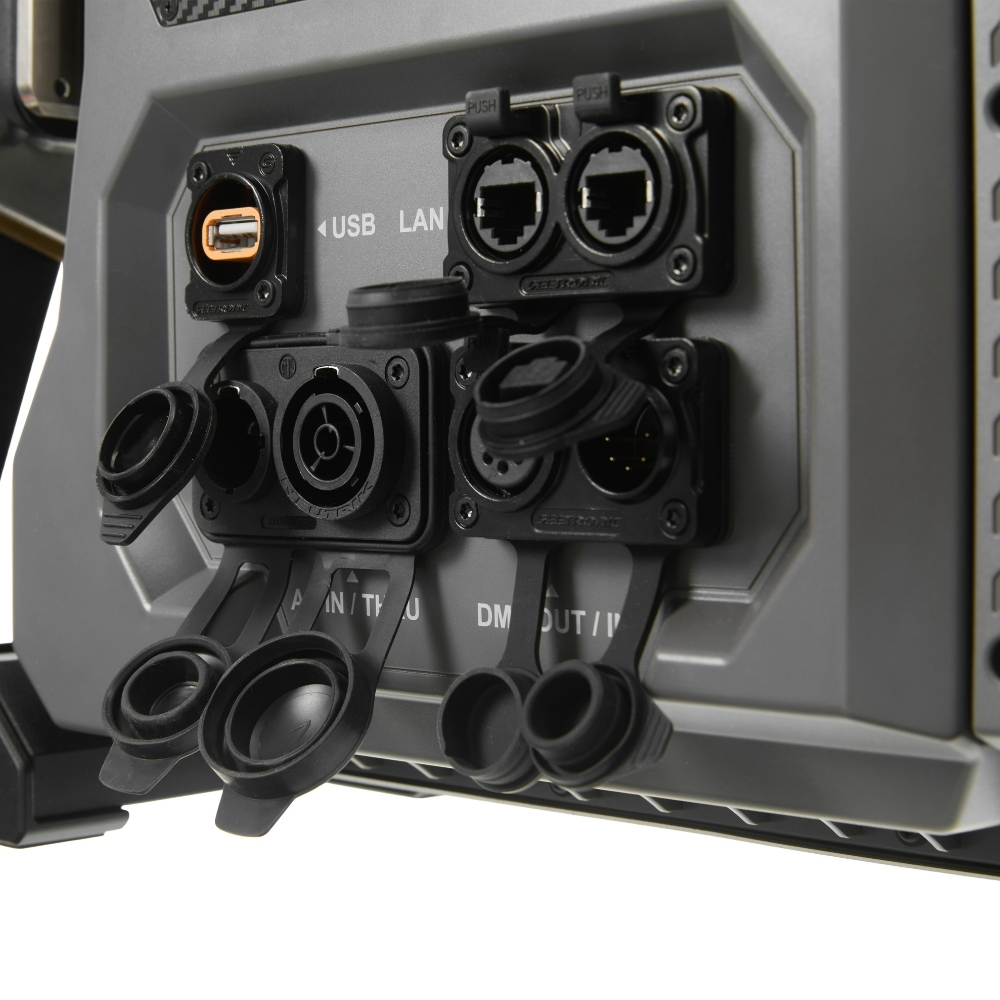

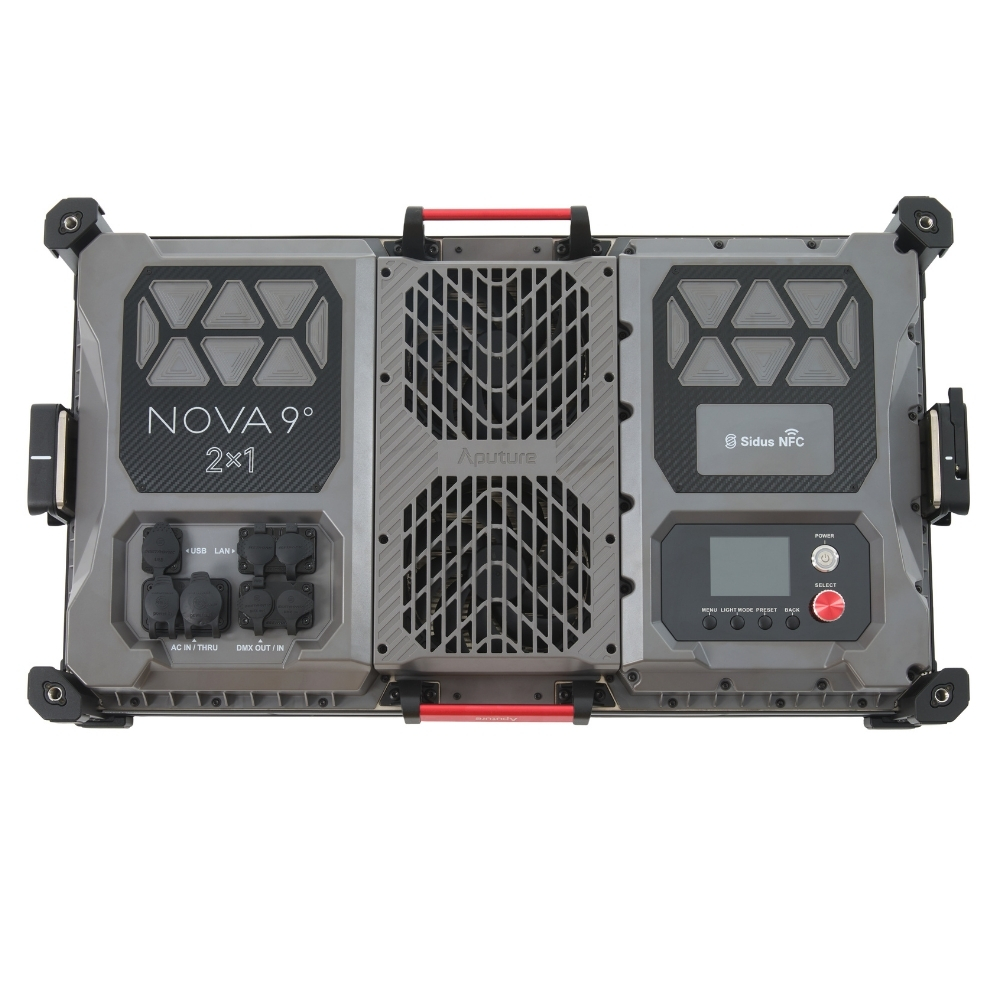

Control Ports:
- 1x 5-pin DMX in
- 1x 5-pin DMX out
- 2x locking RJ45
-
Firmware Upgrade Methods:
- Sidus Link
- Sidus Link Pro
- USB-A
-
Wireless Range (Bluetooth & CRMX): ≤100 m / ≤328.1 ft
-
Cooling Method: Active (onboard fans)
-
Lamp Head Fan Noise Levels @ 1 m:
- Smart Mode: Variable
- High Speed Mode: 40 dBa
- Medium Speed Mode: 35 dBa
- Silent Mode: 0 dBa
-
Light Control:
- 0.1–100% stepless dimming
- 4 dimming curves: Linear, Exponential, Logarithmic, S-shaped
- Dual output modes: Max, Constant
- Lead-follow and studio mode
- 15 built-in lighting effects
- 10 savable presets
-
Lamp Head Weight with Yoke: 19.65 kg / 43.32 lbs

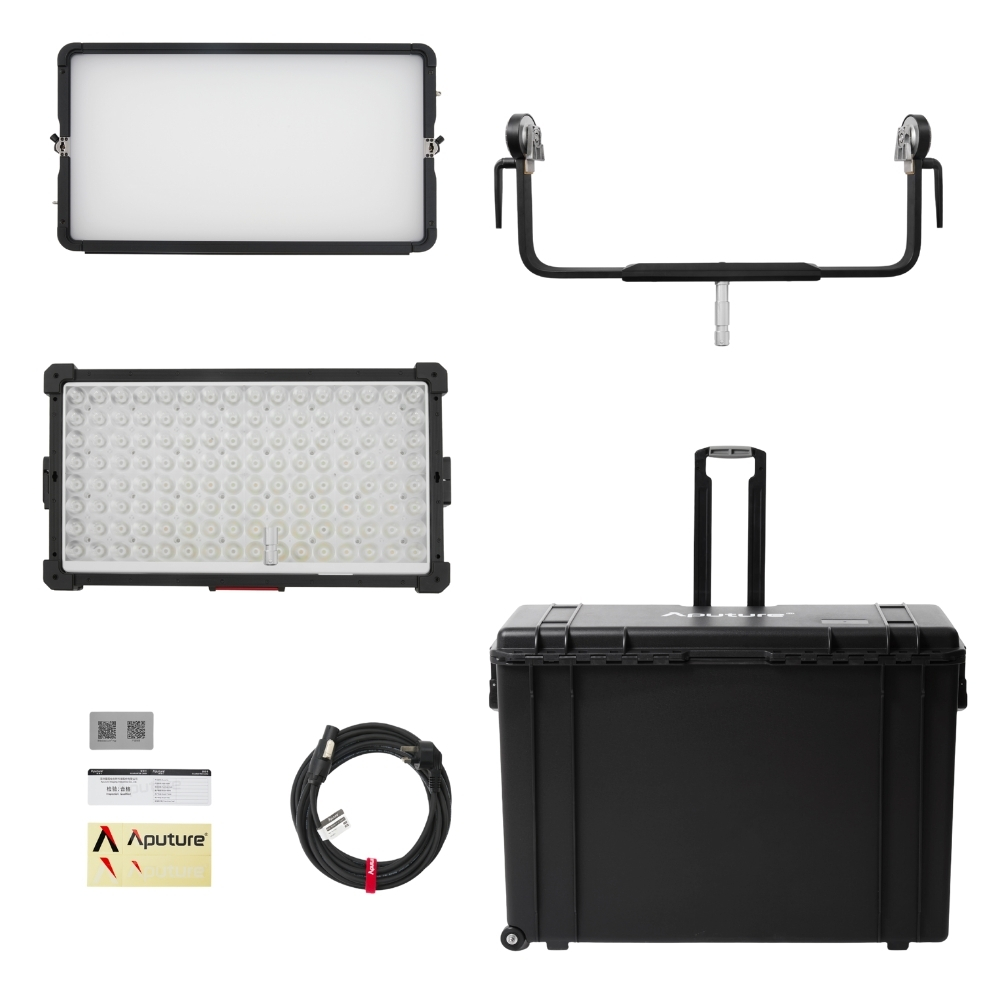

In the Box
- 1x NOVA 9º 2x1 Lamp Head

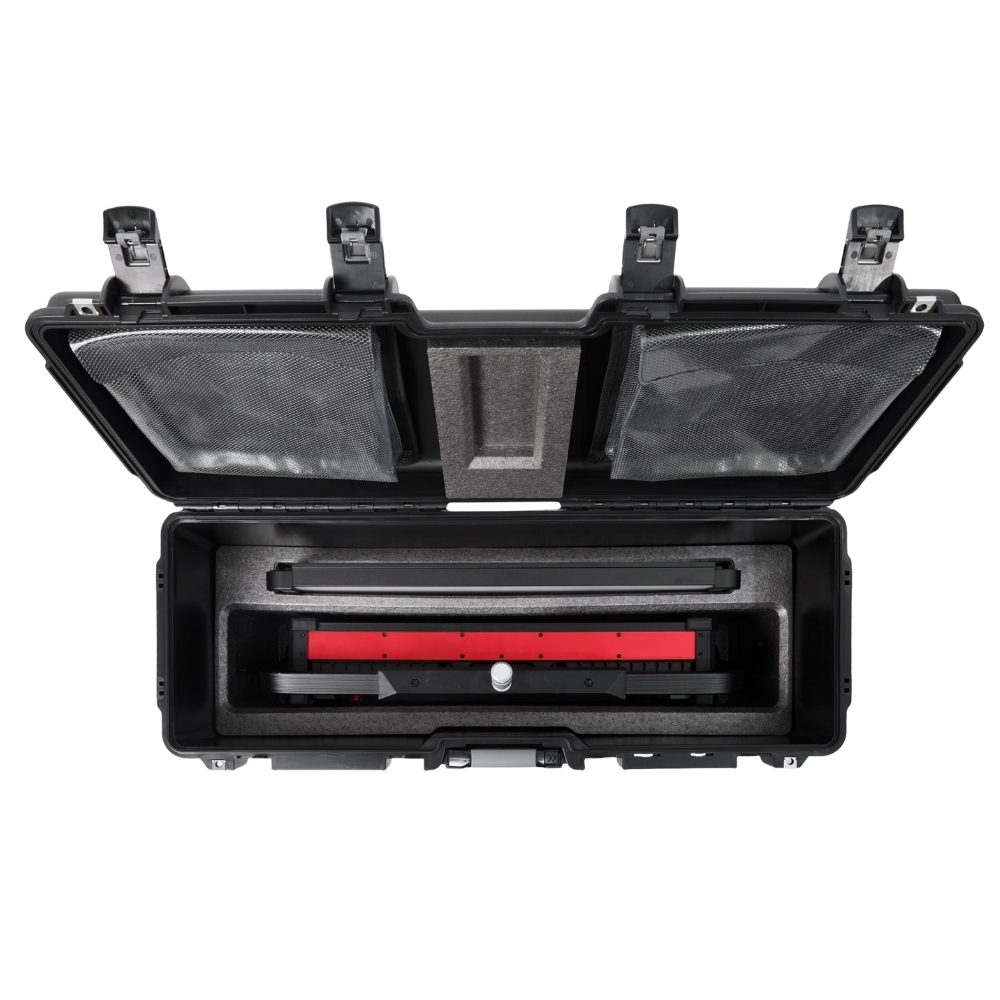

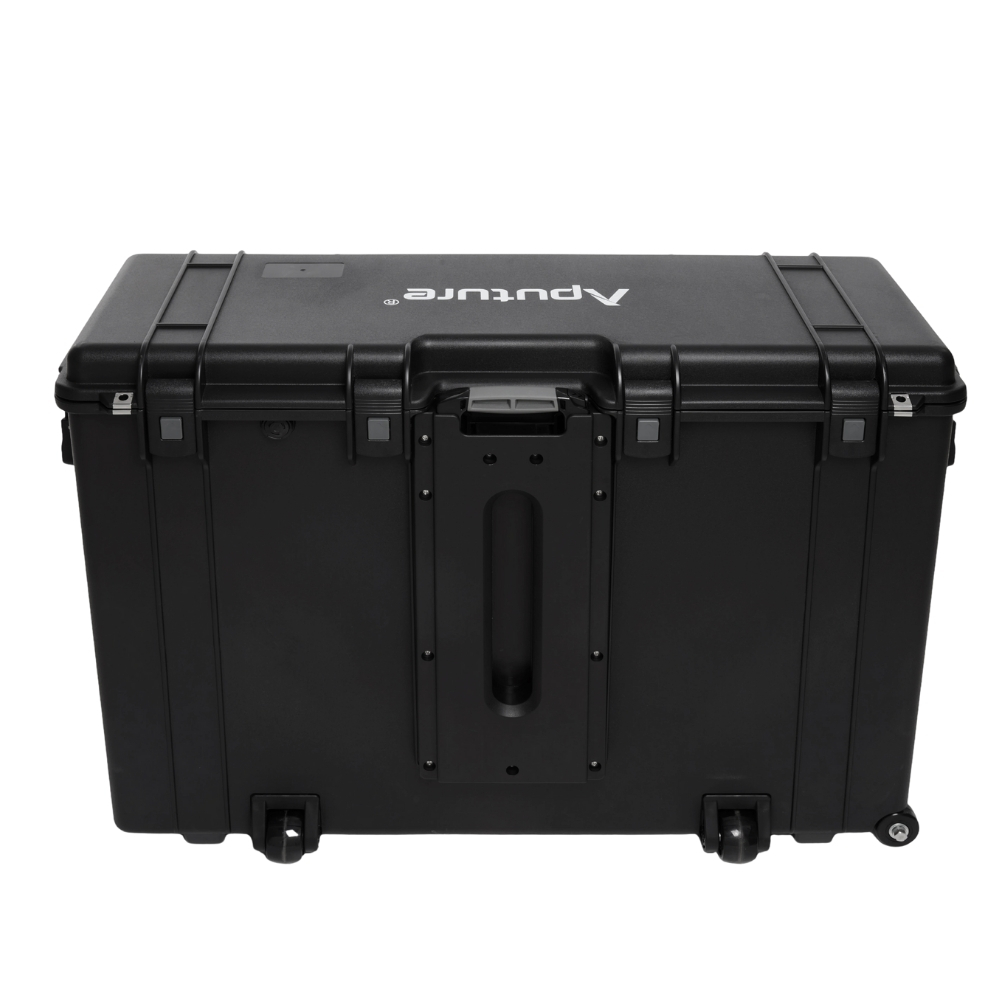

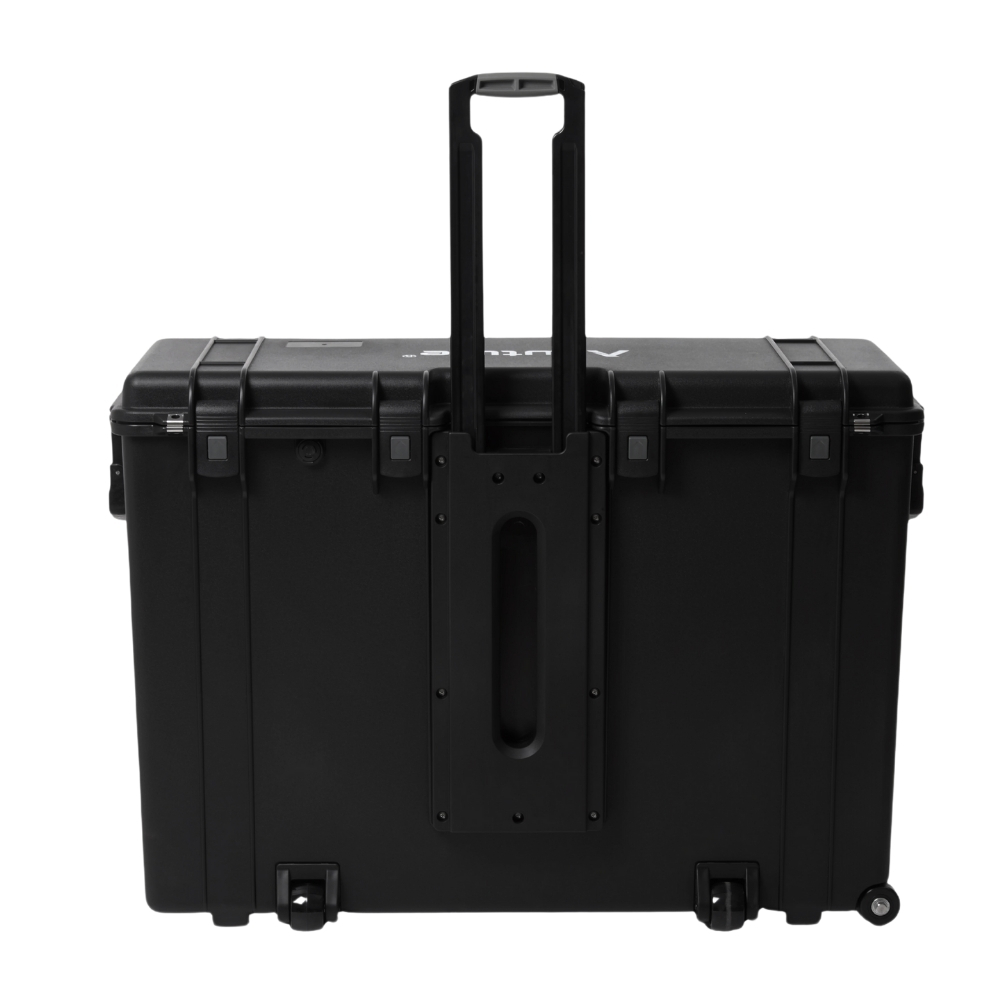

- 1x NOVA Rolling Hard Case

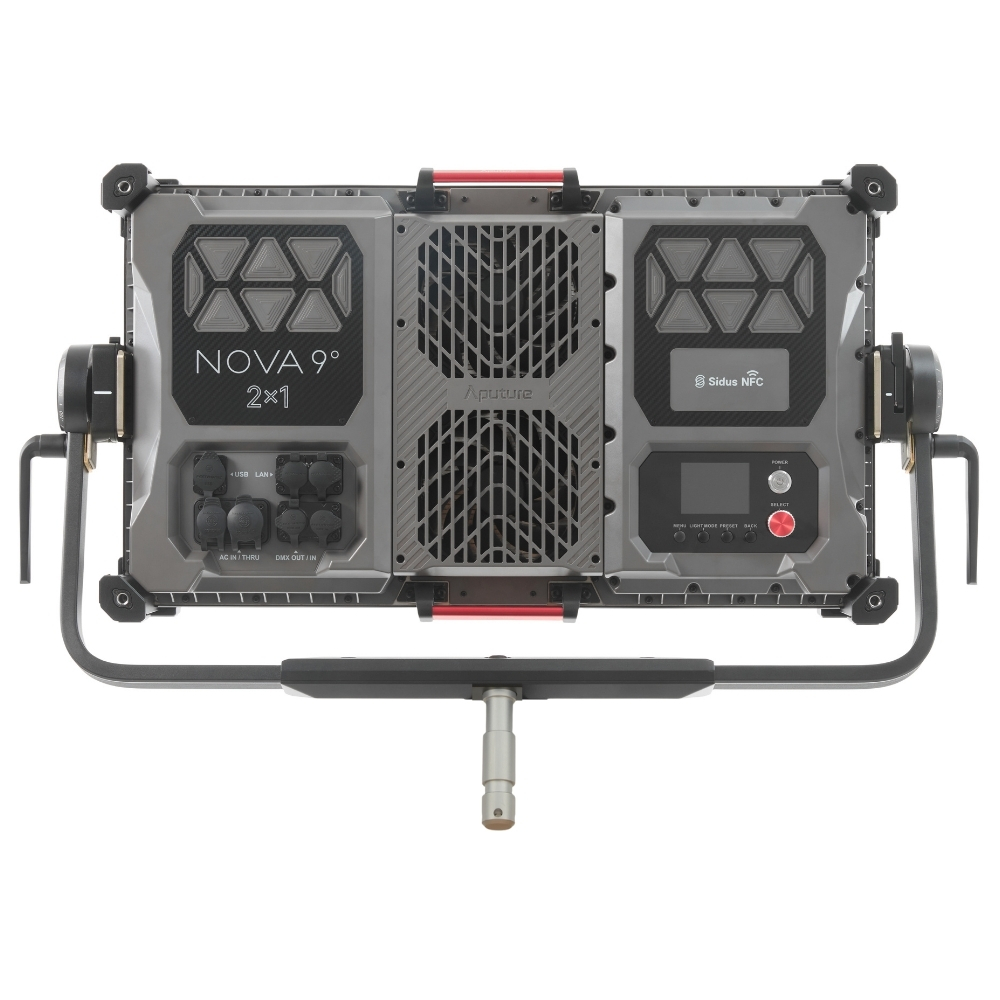

- 1x NOVA 2x1 Removable Yoke with Junior Pin
- 1x NOVA 2x1 Flat Diffuser
- 1x AC Power Cable (6 m)
- 1x Safety (50 cm)
