SASSE Dimmer 3000W für ohmsche Verbraucher
Item no.:
12317
Product information "SASSE Dimmer 3000W für ohmsche Verbraucher"

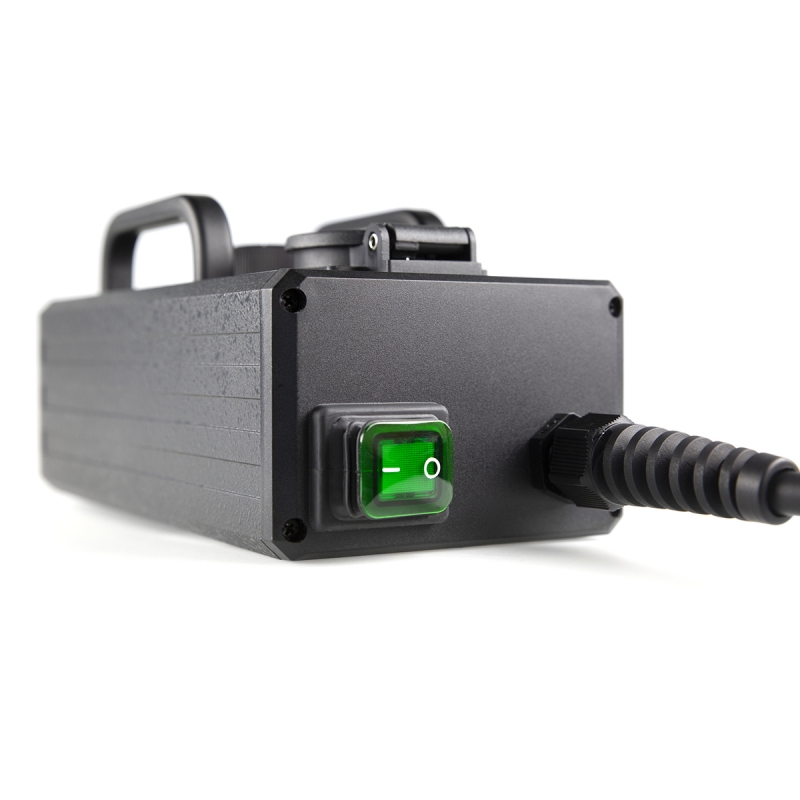

In the field of stage technology, there's often a need to control large loads that don't have their own power regulation. The FG-ACC-PC 3000 provides an effective solution for this challenge. This device is capable of controlling resistive loads up to 3 kW through phase-cutting.
Features of the FG-ACC-PC 3000 include:
- Compact design – a phase-cut controller specifically for resistive loads up to 3000W.
- Linearized power adjustment via a rotary potentiometer for simple and precise control.
- Automatic adaptation to frequency fluctuations to ensure consistent performance.
- Protection by an IP 54-certified enclosure that is dust and splash-proof.
- Extremely robust with solid protective bars to guard the device from external impacts.
- Utilization of highly durable rubber-insulated cable for long-term reliability.
- Integrated on/off switch for user convenience.
- Available mounting angles with M10 thread for easy installation.
This device guarantees consistently high performance and reliability, even under the most challenging conditions.
Technical specifications of the FG-ACC-PC 3000:
- Input voltage: Typically 230VAC at 50Hz
- Output power: Up to 3000W
- Frequency range: 43 - 70 Hz
- Output current: Up to 13A
- Control principle: Phase-cut control
- Output voltage: Variable from 0 to 230VAC
- Control type: Via Potentiometer
- Connections: 2-meter power cable with Schuko plug; Schuko socket with hinged cover
- Protection class: IP54
- Dimensions (W x H x D): 214 x 105 x 97 mm
Thus, the FG-ACC-PC 3000 is a reliable and safe choice for technically demanding requirements in the realm of stage engineering.
| Colour: | black |
|---|---|
| Condition: | new |
| Connection: | Schuko |
| Dimming: | 0 - 100% |
| Power Consumption: | 3000 W |
| Protection Class / IP Rating: | IP 54 |
