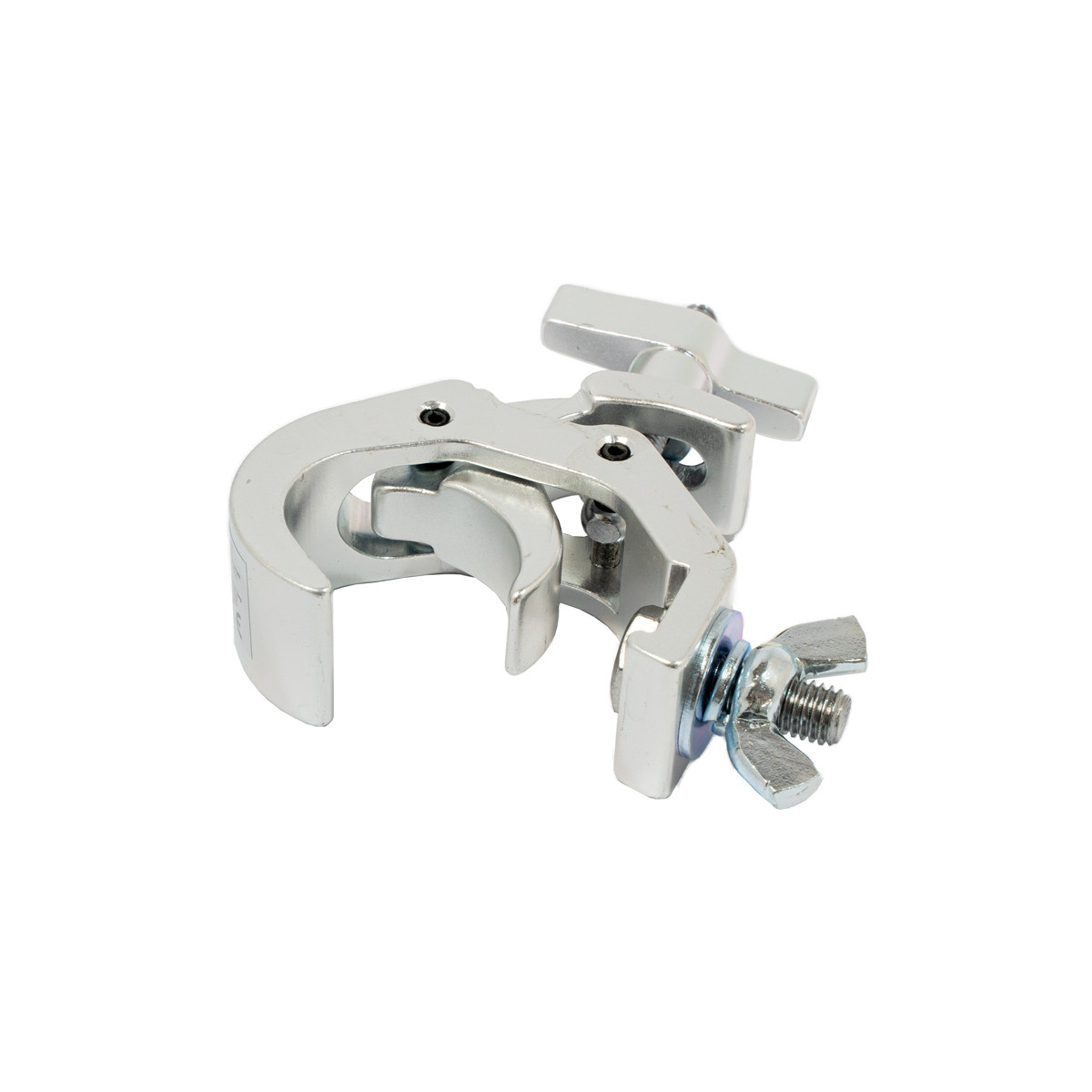

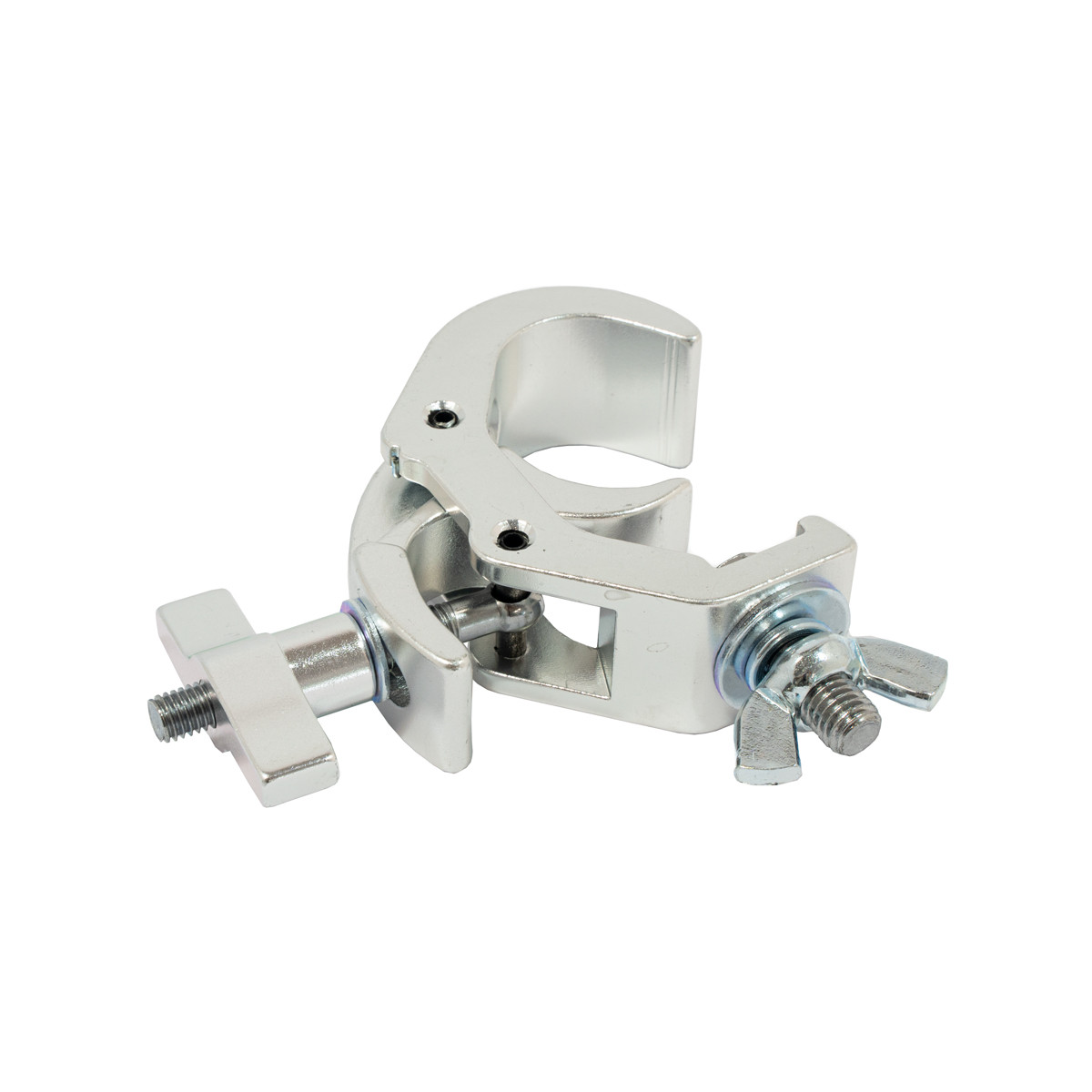

Duratruss DT Jr Selflock Clamp 50kg
Item no.:
18389
Product information "Duratruss DT Jr Selflock Clamp 50kg"
The Duratruss DT Jr Selflock Clamp 50kg is a compact, professional truss coupler designed for fast and safe rigging on 32–40 mm tubes. Its self-locking mechanism enables one-hand operation, speeding up setups on stage, on set, or in the studio. With a safe working load of 50 kg, it’s ideal for lightweight to mid-weight fixtures, effects, and accessories. Made from 6061-T6 aluminum, it combines strength with low weight. Delivered ready to use with M10 screw, washer, and wing nut for direct fixture mounting.
Typical Applications:
- Film/TV, theatre, live events, trade shows, photo and video studios
- Quick one-hand handling under time pressure
- Secure mounting of compact luminaires and accessories
Technical Data:
- Delivery includes: Coupler with M10 screw, washer & wing nut
- For truss pipes Ø 32–40 mm
- Material: Aluminium 6061 T6
- Device screw: M10 x 30
- Colour: silver or black
- Max. load/SWL: 50 kg
- Dimensions: 87.1 x 30.0 mm (without screw)
- Weight: 0.238 kg
