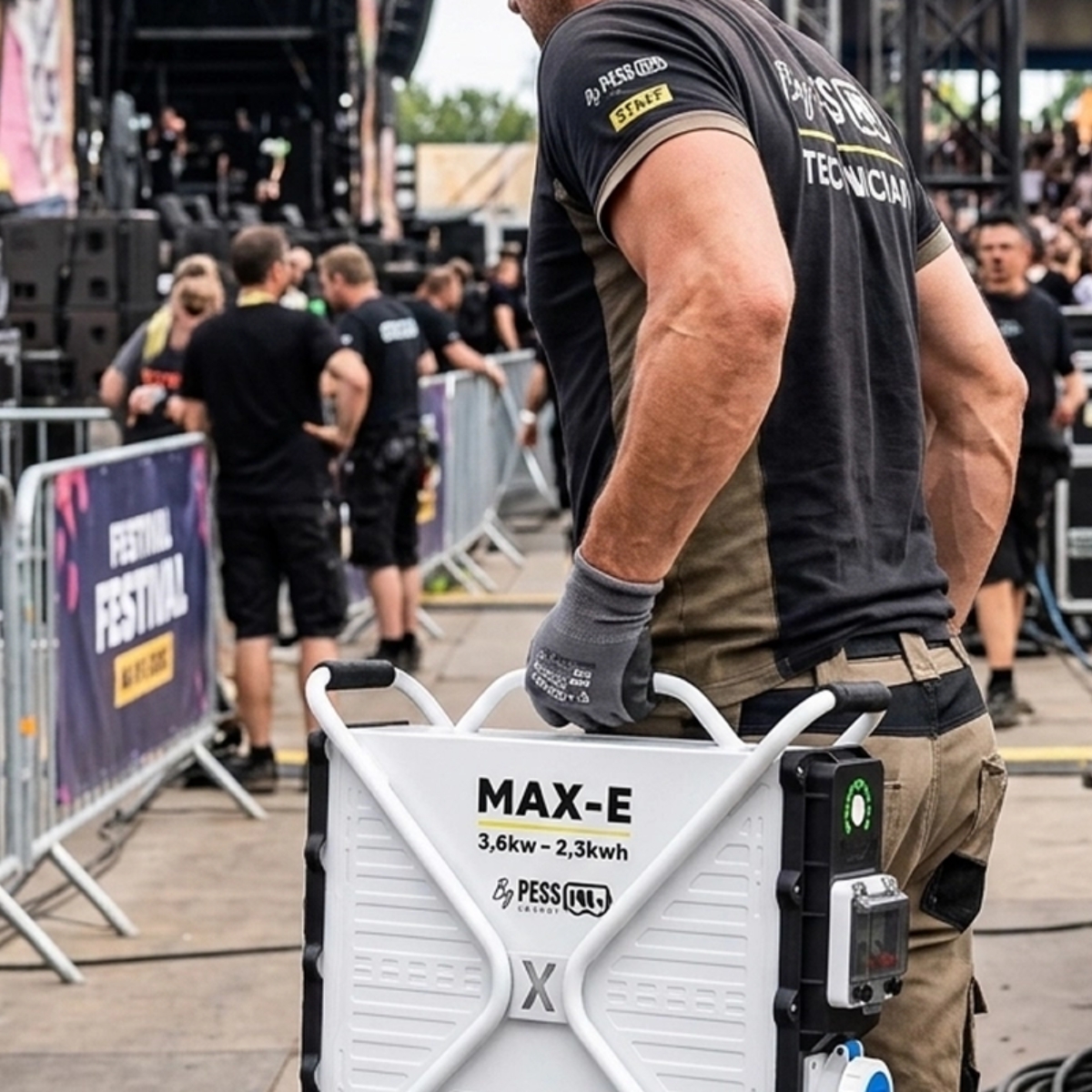

Pess Energy MAX-E 3600W Battery

MAX-E – Compact Power Supply Without Compromise
We are known for our mobile, battery-powered power solutions. The Max-E expands our offering: compact, robust, and designed and certified by PESS Energy for AV applications, construction sites, and emergency situations – reliable power, immediately available.

Autonomy and Robustness - Industrial Power, Zero Emissions
The Max-E delivers 3,600 W continuous power and up to 20,000 W peak power with 230 V pure sine wave output and IP54 rating. On site, it enables arc welding (~100 electrodes), cutting (~44 cuts on cast iron), demolition (~8.5 t of concrete), or pumping for more than 3 hours at 10 bar – silently, without fuel, without CO₂ emissions.

Unrestricted Live Feed and Filming
Silent (<30 dB), the Max-E integrates seamlessly into film sets and events. One unit is sufficient to power a DIT/monitoring control room for 3 to 5 hours; three units cover a small, complete stage (sound system, LED lighting, control room) for over 3 hours – in city centers, in the countryside, or on sensitive sites.

Key Features:

• ✓ Portable
• ✓ Silent operation
• ✓ Zero emissions
• ✓ Extremely robust
• ✓ Sustainable
• ✓ Safe and powerful



Technical Specifications

AC Production

• Rated Output Power: 3,600 W
• Peak Power: 20,000 W
• Nominal Capacity: 2,300 Wh
• Rated Output Voltage: 230 V, Pure Sine Wave
• Frequency: 50±0.5 Hz
• No Load Consumption: <30 W

Connections

• AC Output Connection: 1x Single-Phase Socket 16A

Temperatures

• Recharge Temperature: 5 – 40 °C
• Operating Temperature: -15 – 55 °C
• Storage Temperature: -20 – 45 °C

Physical Properties

• Dimensions (W × D × H): 52.6 × 21.1 × 48.5 cm
• Weight: 24 kg
• Noise Level: <30 dB
• IP Rating: IP54
• Robust Metal Structure Design
• 10-Level Battery Indicator
• Cooling Method: Natural Cooling

Environment & Certifications

• Certifications: CE / IEC 62619 / UN38.3 / IEC 62968-1 / IEC 61000-6
• Manufacturer's Warranty: 2 Years
• Protection Class: Class 1
• Max Operating Altitude: 2,000 m
• Operating Humidity: 10–90% RH
• Storage Humidity: 5–95% RH

Grid Recharging

• AC Power Supply: 230±5 VAC
• Input Power (adjustable): 300–1,200 W
• Recharging Time: 2h30 at 1,200 W

Protections

• Residual Current Breaker (RCD): 30 mA
• Nut-Type Grounding Connector

Operating Times

• 500 W: 4 h
• 1,000 W: 2 h
• 2,000 W: 1 h

Service

• Intelligent App: Monitoring, Dashboard, Remote Settings
