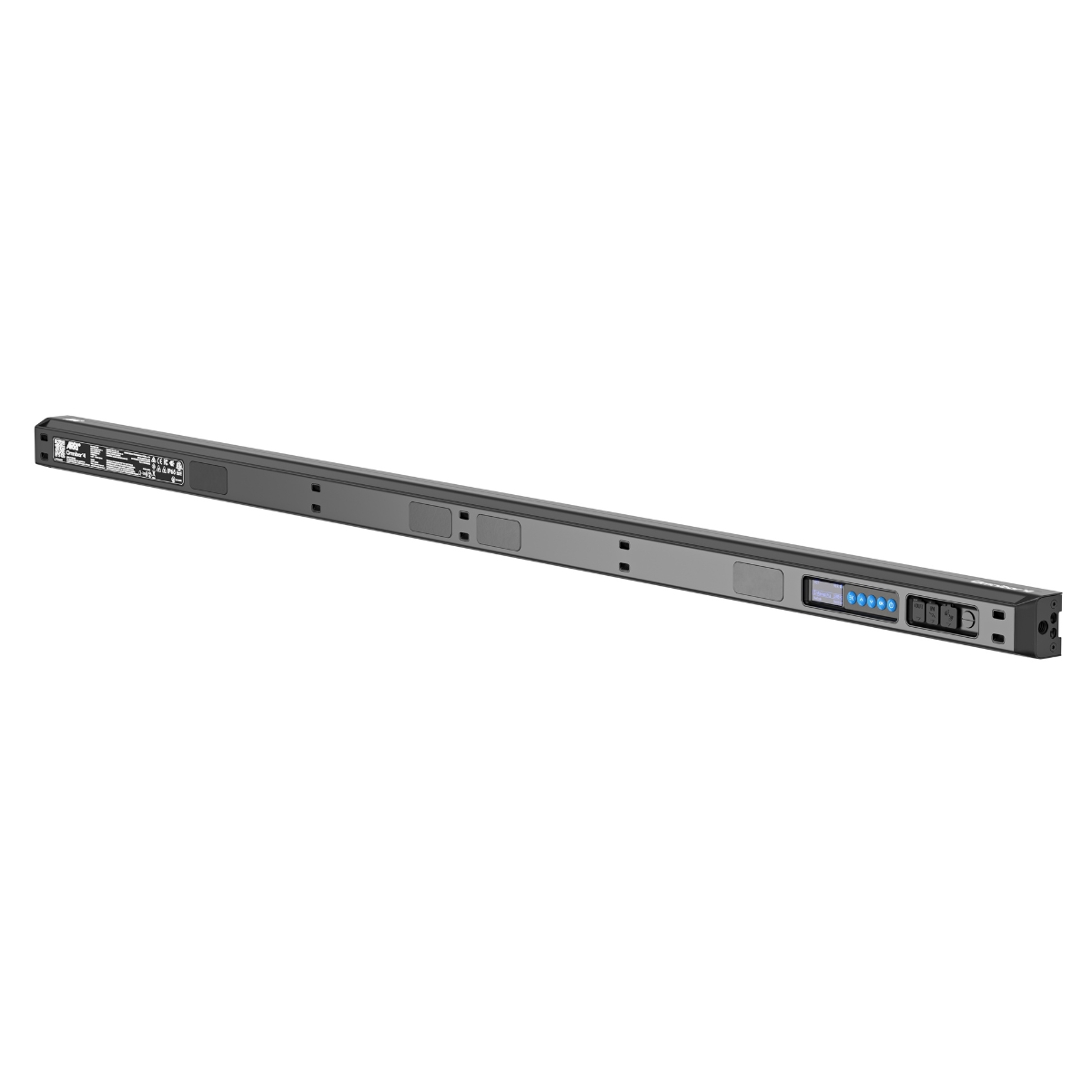

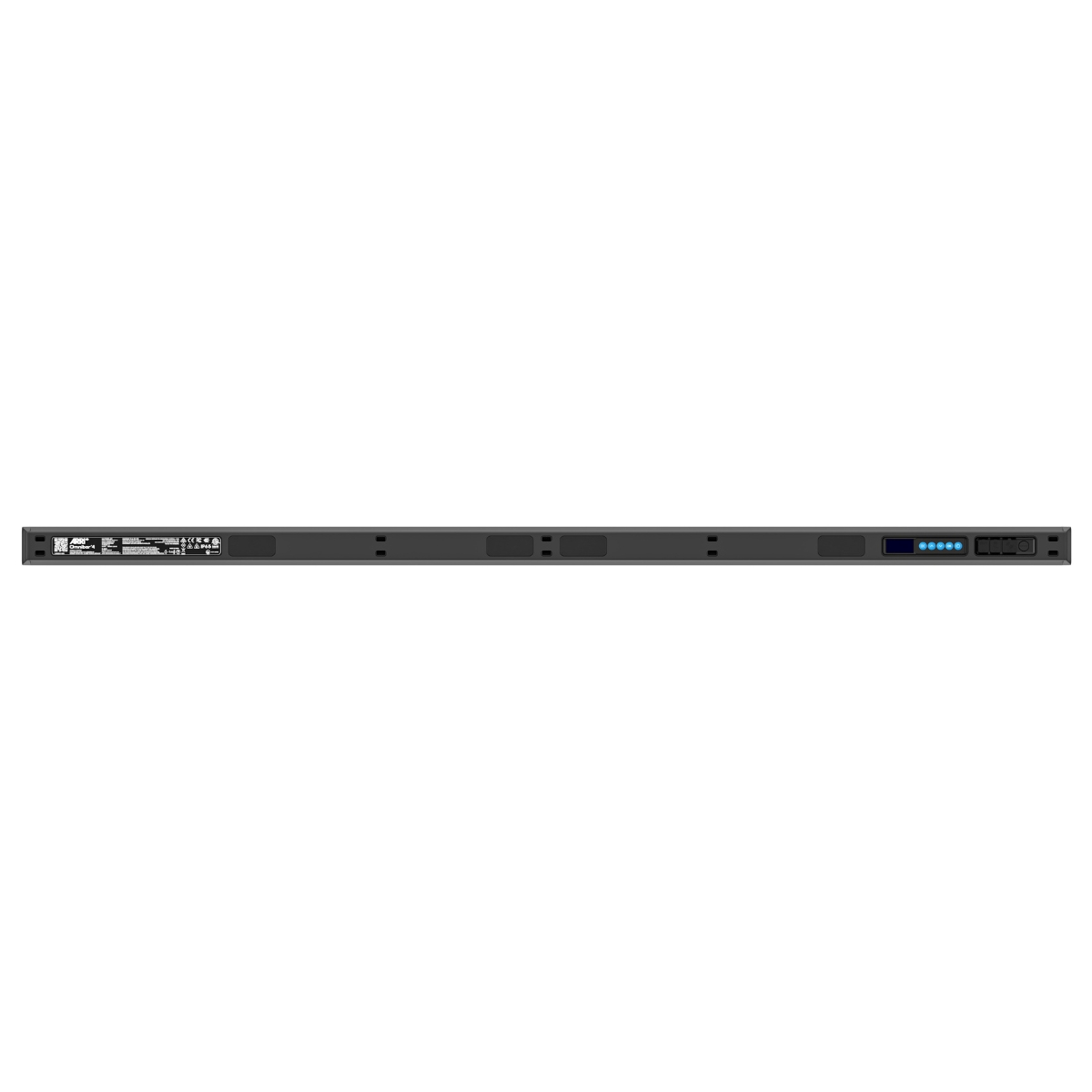

ARRI Omnibar 4 - black
Available in 60 days, delivery time 30 days
Product information "ARRI Omnibar 4 - black"
The ARRI Omnibar 4 is a battery‑powered LED bar with an RGBMA color‑mixing system, delivering maximum versatility and professional lighting quality in a compact, robust, IP65‑rated housing. With its extended length, it is ideal for large‑area illumination, dynamic light gradients, and long installations in film, TV, event, and content productions.
Multiple Omnibar bars can be combined with minimal visible gaps and daisy‑chained together. Omnibar 2 and Omnibar 4 can be freely mixed and run from shared power and data sources, reducing setup times and cable runs. Front‑loaded, magnetically attached, and quickly interchangeable optics provide precise control of the light character, with beam angles identical to the Omnibar 2.
The RGBMA color engine, wide CCT range, and versatile color modes including pixel and cinematic effects offer substantial creative freedom while maintaining excellent color rendition. With integrated control via CRMX, Bluetooth Mesh, and DMX (up to six universes via Omnibase), the Omnibar 4 slots easily into demanding professional lighting networks.
Omnibar Production and Combo Kits deliver complete transport and accessory solutions for immediate use. Single sets with Omnibar 4 and a full accessory package are perfect for users who prefer custom transport and rigging concepts. Combined with the Omnibar Creator Set, they form a scalable ecosystem for high‑end ARRI lighting.
Technical Data ARRI Omnibar 4
Power & Light
- Power consumption: 50 W
- Color engine: ARRI RGBMA
- CCT: 1,700 – 20,000 K
- Pixel zones: 32
- Beam angle: identical to Omnibar 2
- Open Face: 115°
- Round Diffuser: 145°
- Flat Diffuser: 130°
- Intensifier: 60°
Battery
- Capacity: 98 Wh
- Runtime: up to 24 h (approx. 2 h at max output)
- Charging time: approx. 3 h
Connectors & Control
- DC ports: 6x outputs
- 2x high power daisy chain
- 4x standard
- DMX (up to 6 universes via Omnibase)
- CRMX
- Bluetooth Mesh
Mechanics & Form Factor
- Dimensions: 1196 x 44.6 x 40 mm
- Weight: 2.3 kg
- Protection rating: IP65
- Magnetic mounting points: 4
- Extended cable slots
| Certifications: | CB, CE, ENEC, FCC, PSE (Japan), RoHS |
|---|---|
| Colour temperature: | 1700K - 20000K |
| Connection: | USB-C |
| Connectivity: | Bluetooth, CRMX |
| Housing Color: | black |
| Light Engine: | LED RGBMA |
| Protection Class / IP Rating: | IP 65 |
| Voltage Range: | 24 V DC |
