Aputure F14 Fresnel
Item no.:
97678
Product information "Aputure F14 Fresnel"

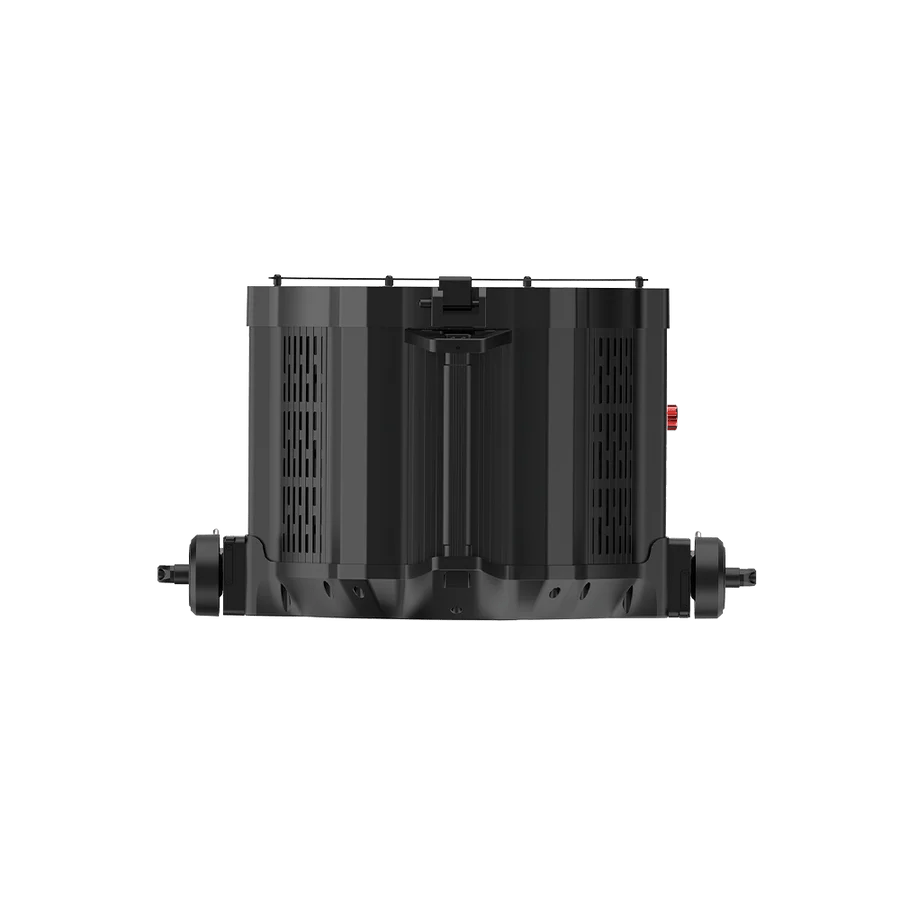

The F14 Fresnel is an electronic Aputure Mount Fresnel modifier with a large 14-inch (350mm) diameter lens and a motorized 18º-45º spot-flood adjustable beam angle range. Designed for Aputure’s all-new high-output Aputure Mount point-source fixtures, the Electro Storm CS15 and Electro Storm XT26, the F14 Fresnel optimizes and amplifies the light output, providing smooth, remote adjustability and a beautiful light quality only achievable with large Fresnels.

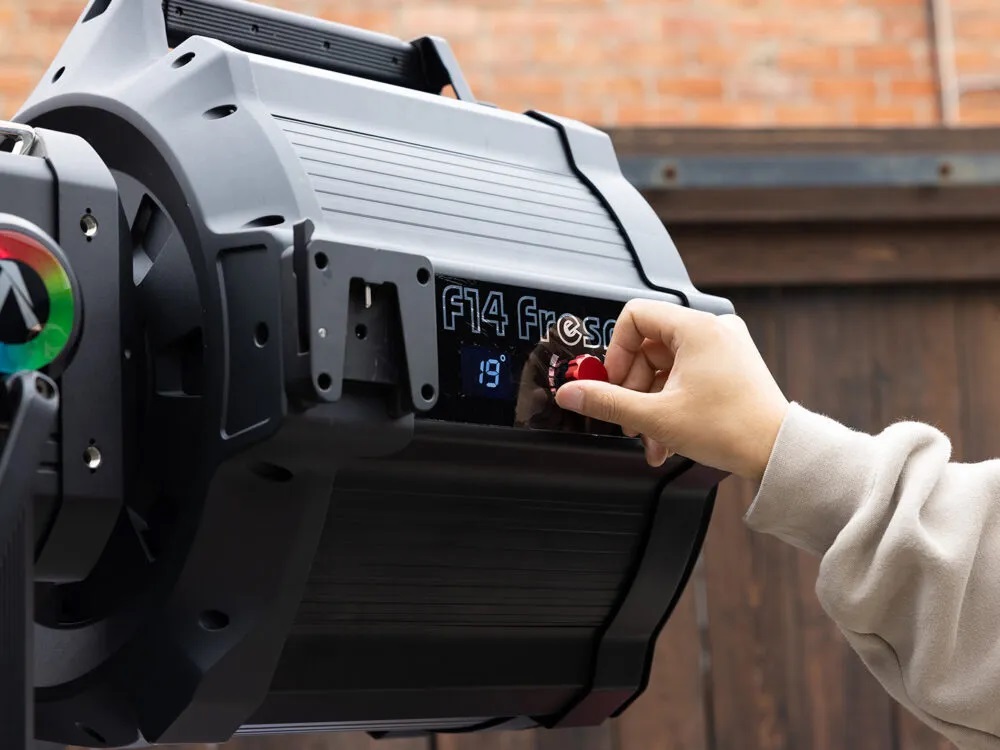

Precision control on professional film sets is key. Utilizing the Aputure Mount and built-in motors, the motorized F14 Fresnel can smoothly and accurately transition from a narrow, focused throw to a wider flood light using the control knob and display screen on the side of the motorized modifier. And when rigged in hard-to-reach places, the beam angle can also be adjusted remotely via the Sidus Link app or DMX controls.
In addition to communicating data for motorized focus control, the F14 Fresnel's Aputure Mount also communicates with the Electro Storm CS15 or XT26 to relay calibration data that the mounted fixtures can use to optimize the accuracy of their light engine output.

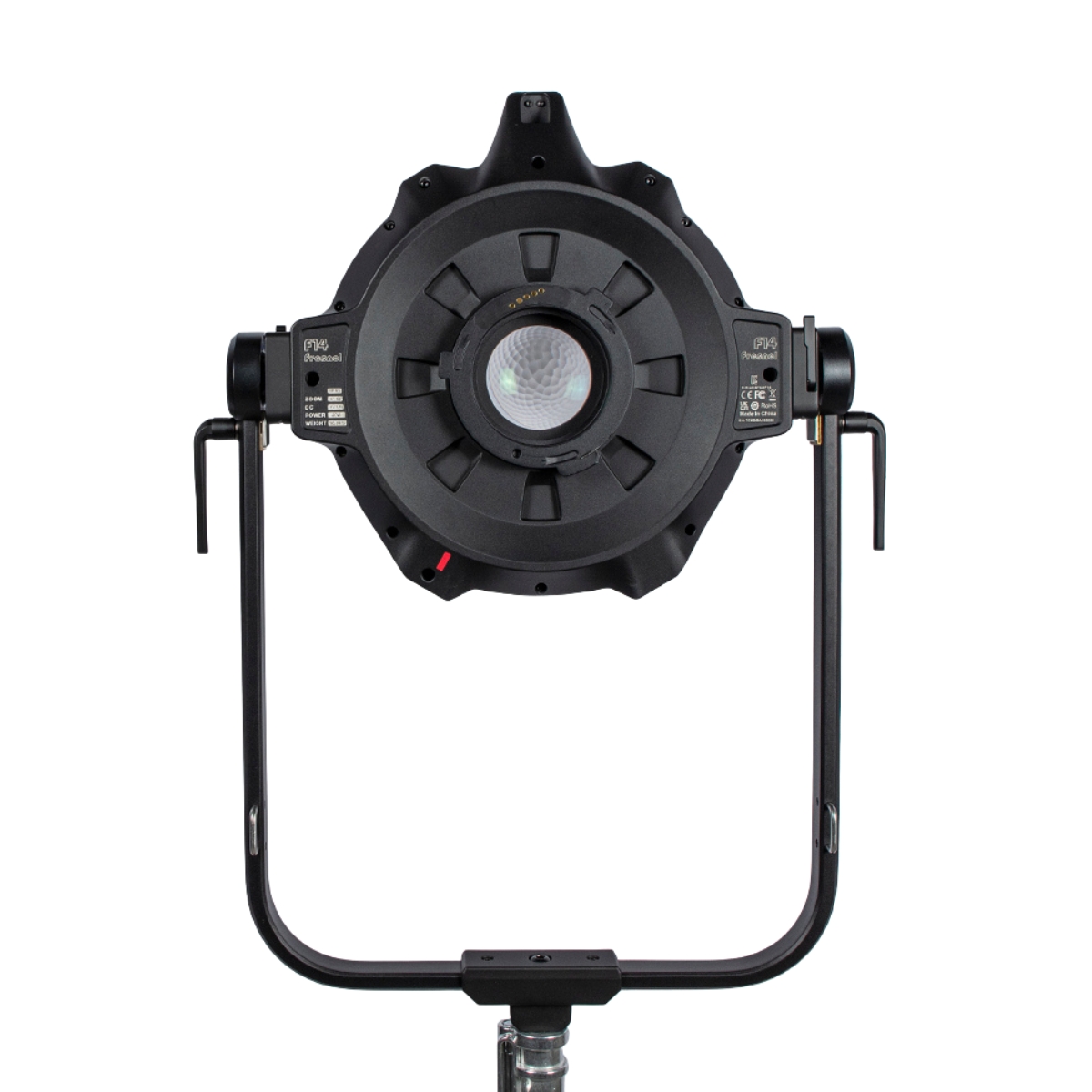

With its large size, the F14 Fresnel also includes a detachable yoke for better balance and ergonomics when mounting the fixture to a stand, as well as a safety chain for added rigging security. When used in conjunction with the included sled for the Electro Storm CS15 and XT26, the F14 Fresnel and combined fixture can be placed onto flat surfaces. The F14 Fresnel and its accessories come packed in a flight case for transport.
WHAT'S IN THE BOX
Precision control on professional film sets is key. Utilizing the Aputure Mount and built-in motors, the motorized F14 Fresnel can smoothly and accurately transition from a narrow, focused throw to a wider flood light using the control knob and display screen on the side of the motorized modifier. And when rigged in hard-to-reach places, the beam angle can also be adjusted remotely via the Sidus Link app or DMX controls.
In addition to communicating data for motorized focus control, the F14 Fresnel's Aputure Mount also communicates with the Electro Storm CS15 or XT26 to relay calibration data that the mounted fixtures can use to optimize the accuracy of their light engine output.
- F14 Fresnel
- F14 Fresnel Yoke
- F14 Barn Doors
- F14 Fresnel Sled
- Flight Case
| Protection Class / IP Rating: | IP 65 |
|---|
