Aputure INFINIBAR PB12 8-Light Kit (EU Version)
Item no.:
97558
Product information "Aputure INFINIBAR PB12 8-Light Kit (EU Version)"

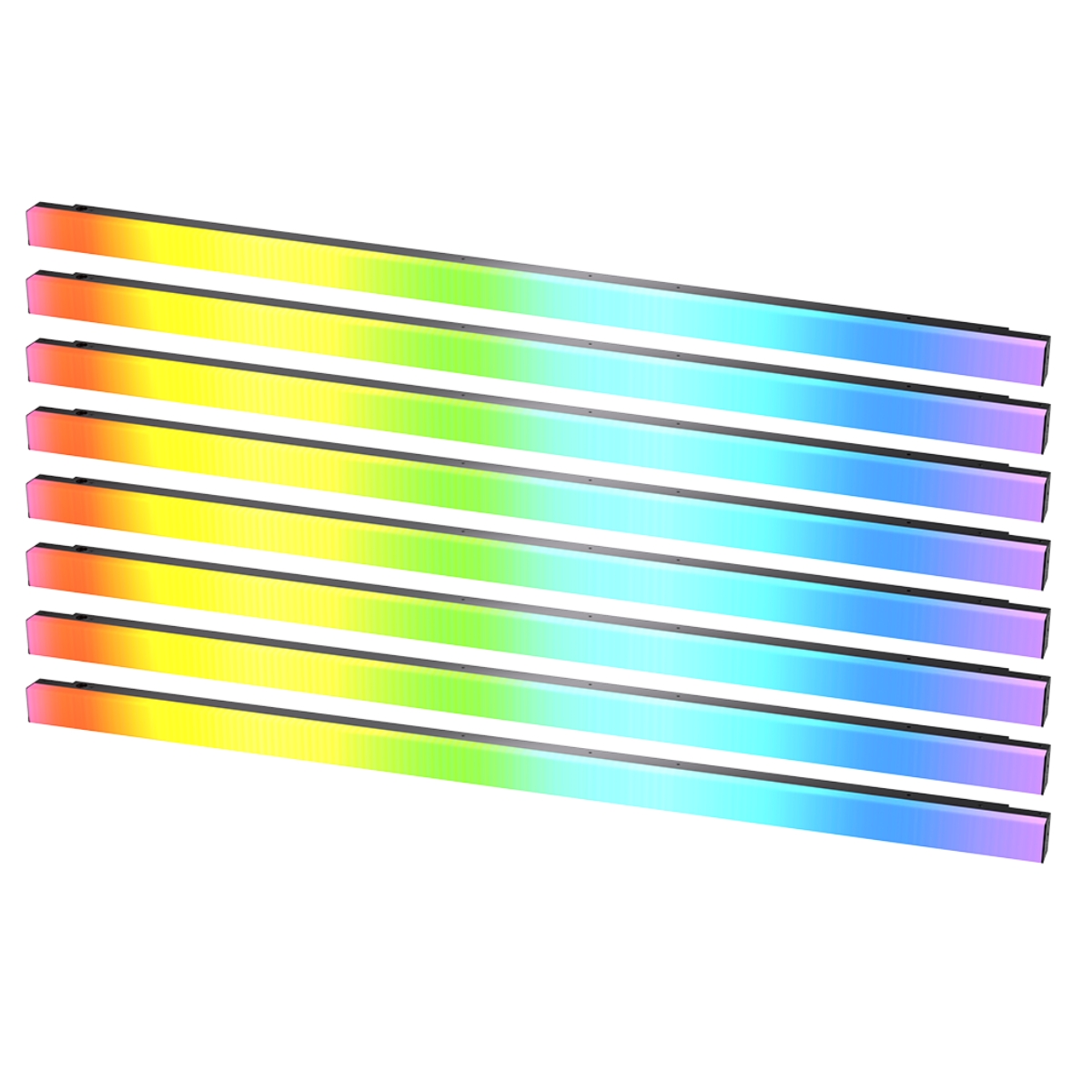

For professionals looking to build large arrays of dynamic lighting structures for volume stages and sets, the INFINIBAR PB12 8-Light Kit expands the flexibility of the INFINIBAR PB12’s with not only 8x the available light, but also additional power cables, adapters, and light control grids to extend your creative possibilities.

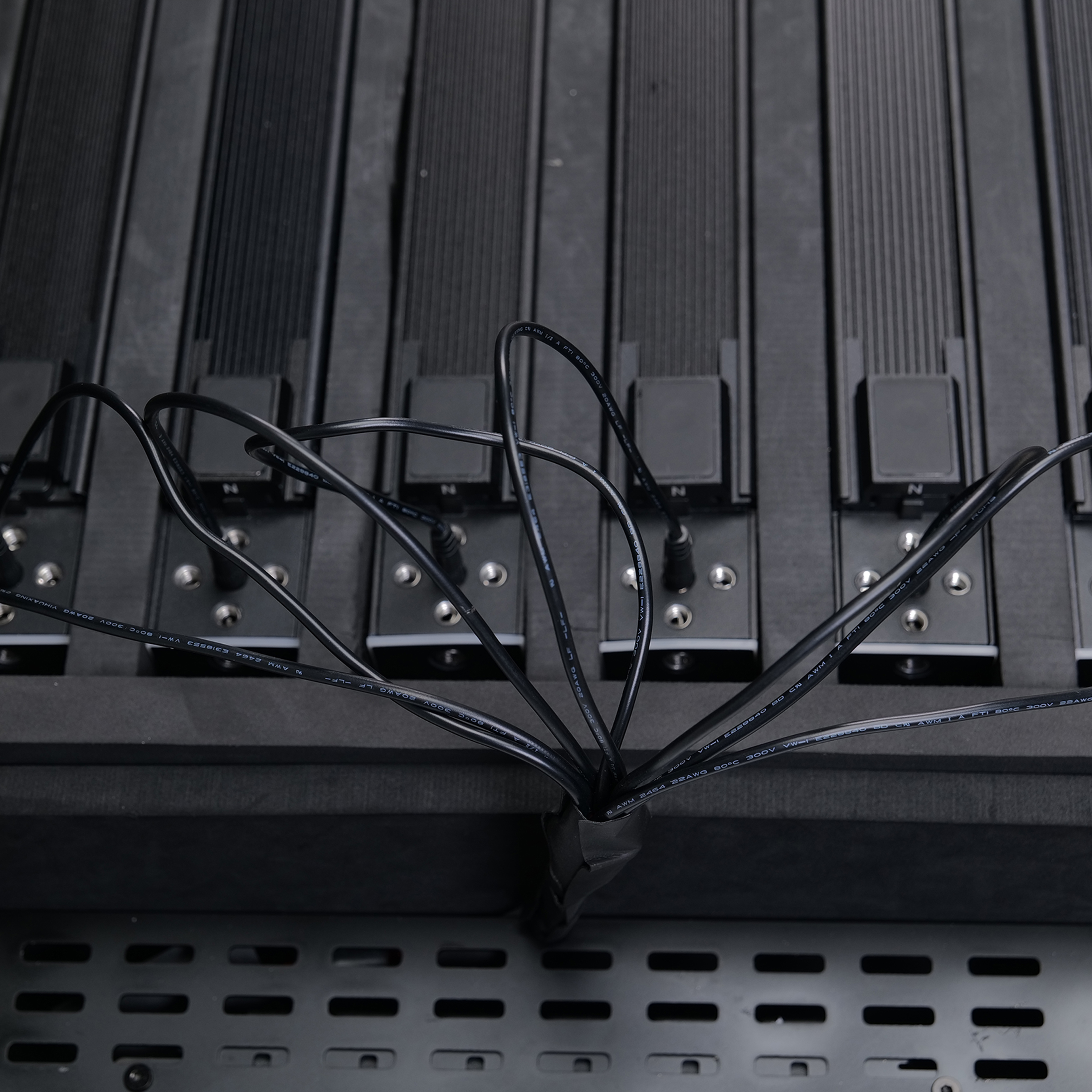

The INFINIBAR PB12 8-Light Kit is designed to carry cinematographers and lighting designers through long productions. In addition to charging each light individually, the 8-Light Kit includes a 330W Power Adapter with 8-Way Splitters, allowing you to simultaneously supply power to all 8 fixtures.

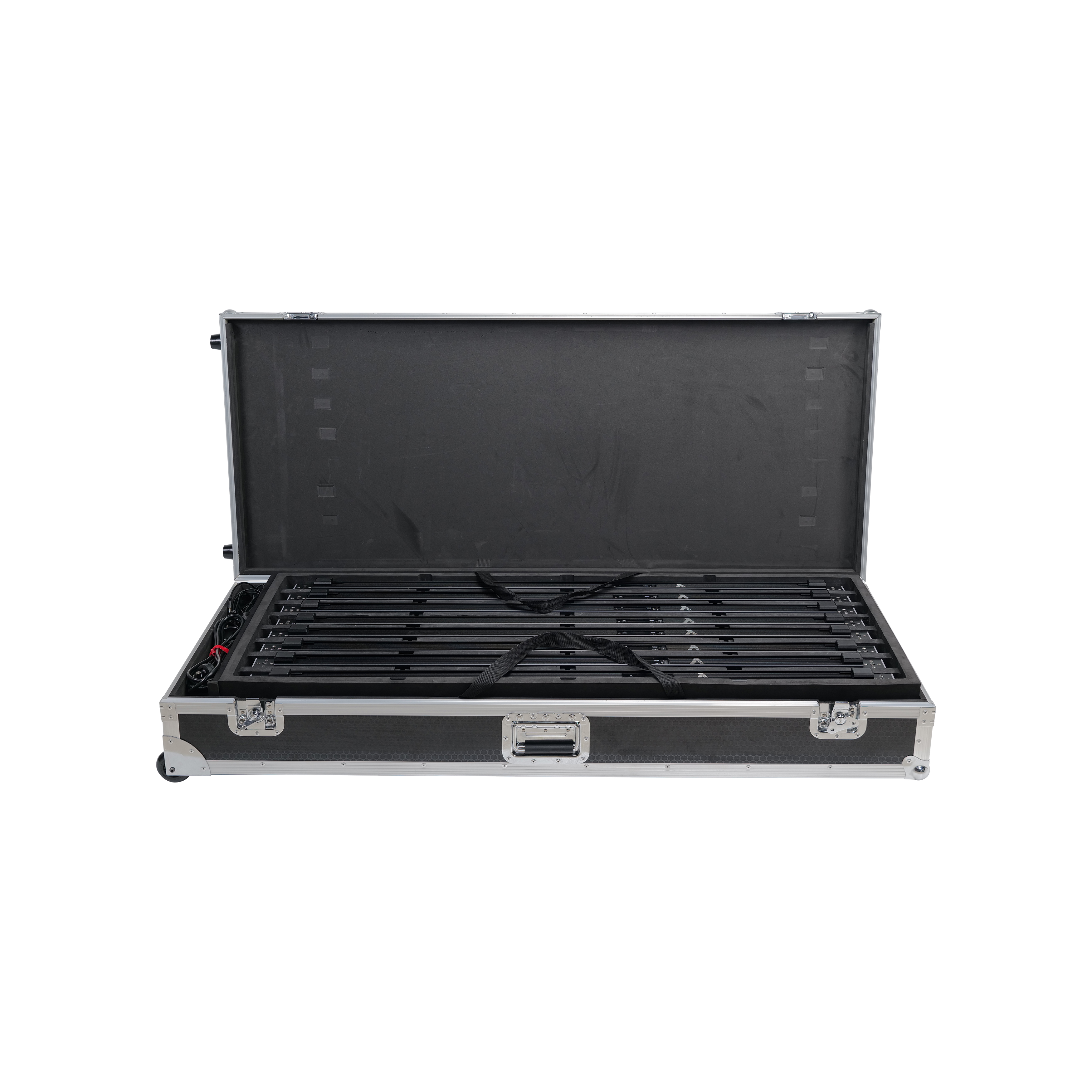

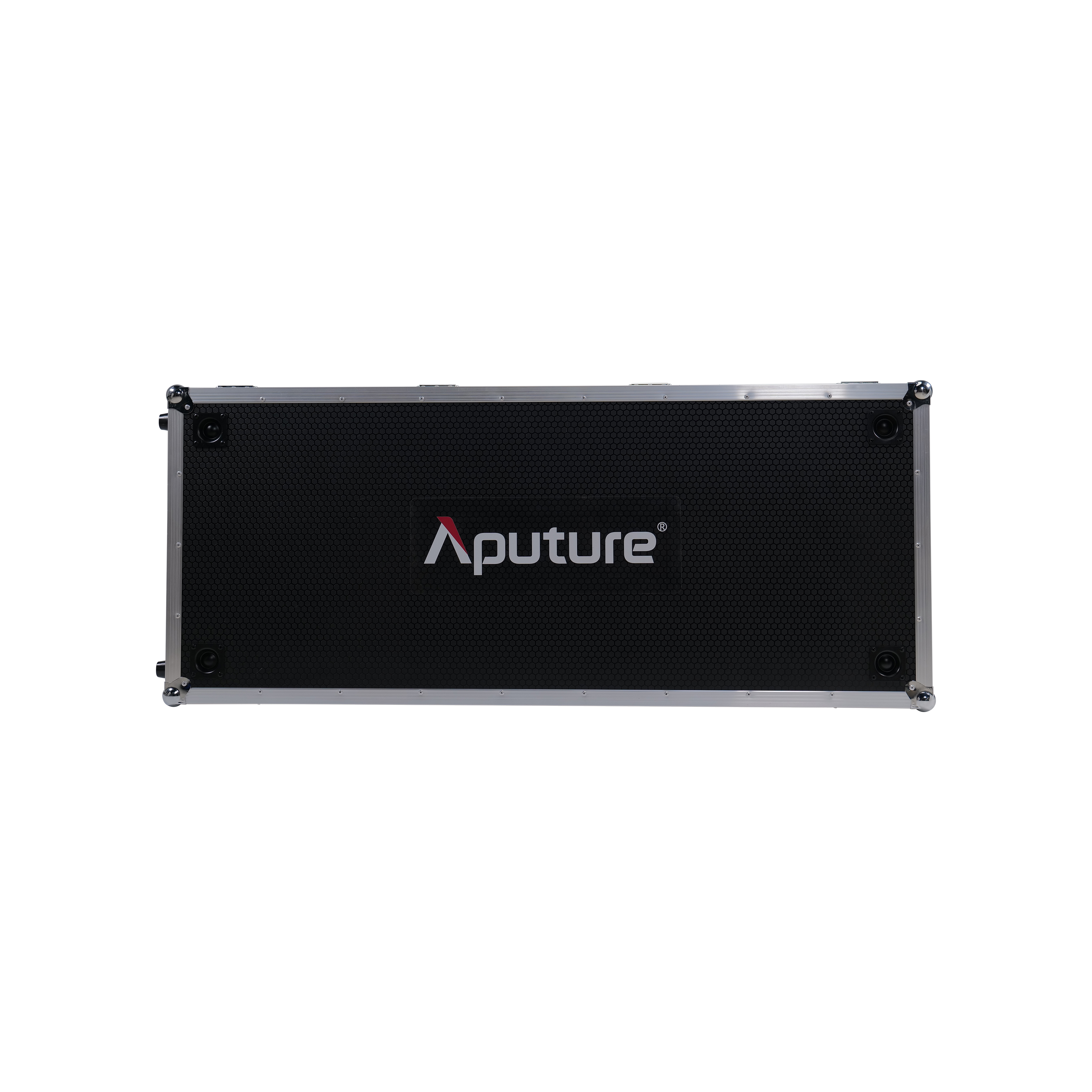

Designed for lighting professionals, the INFINIBAR PB12 8-Light Kit is contained and charged in a sturdy flight case, allowing you to safely transport and store its included accessories and large power supply – making it ready for grip trucks and film sets.
The INFINIBAR PB12 is a 4-foot RGBWW LED pixel bar for cinematographers and lighting designers. Featuring an infinite blending design with intuitive mounting and connecting options, advanced connectivity methods with wireless CRMX connectivity, and industry-leading pixel density, the INIFINIBAR PB12 excels in building and creating unique, colorful designs that bring scenes to life in new and exciting ways.
As a rectangular linear LED light, the INFINIBARs can be infinitely and seamlessly connected end-to-end with no visible gaps between lights, opening up new creative possibilities for filmmakers, whether hidden in scene or used as in-camera practicals on set. Create seamless pixelated effects across the PB12’s 96 RGB pixels, or across multiple pixel bars with the 10 splicing connectors* to create a range of shapes.

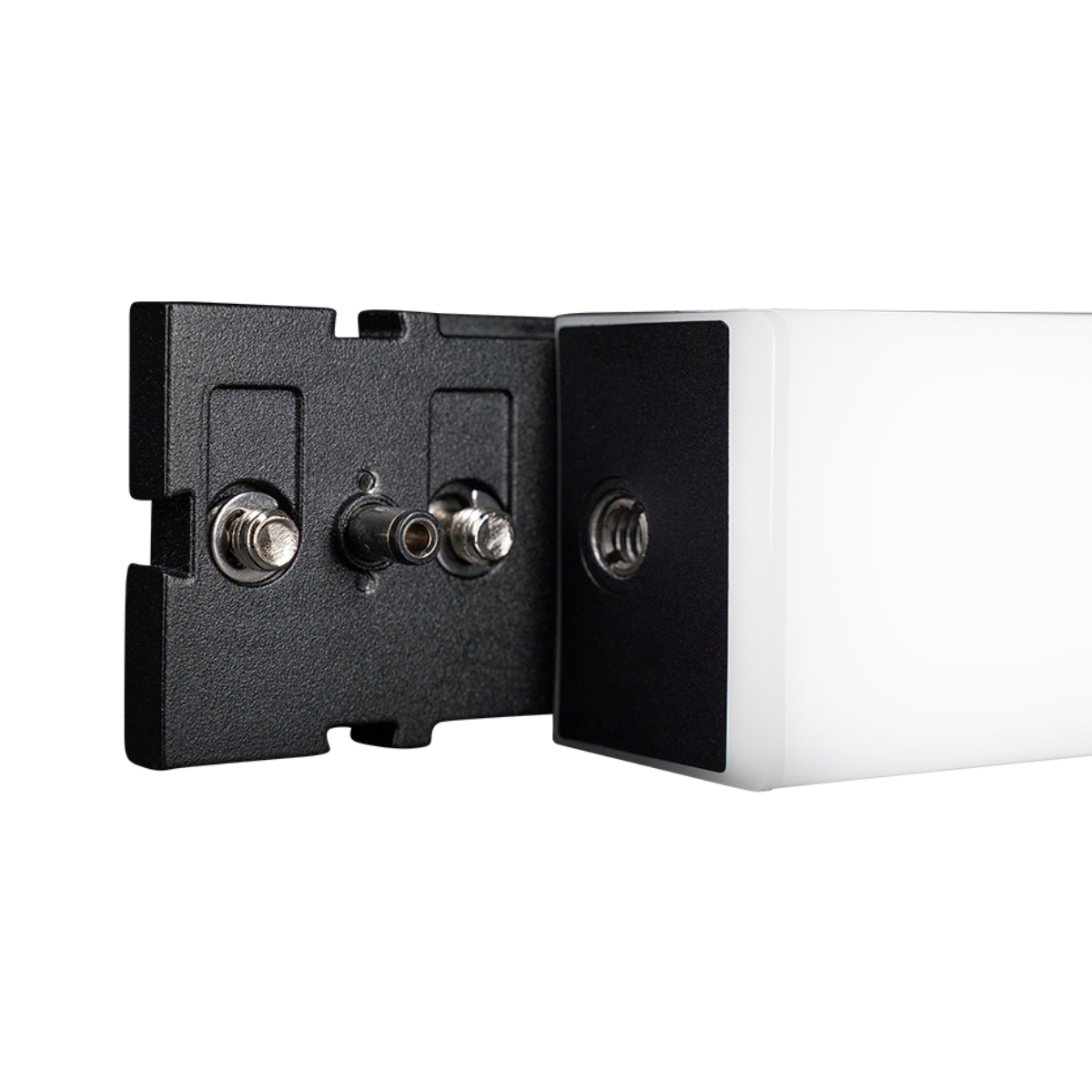

From flat and 3-dimensional triangles, hexagons, squares, straight lines, to spinning 3-point, 4-point, or 6-point stars, the design and configuration possibilities are infinite. Connect multiple linear pixelated lights with the 10 splicing connectors* on the back of each INFINIBAR to fit the needs of your production, and even share AC power across multiple lights.
* The INFINIBAR PB12 8-Light Kit includes 8 Straight Connectors. Remaining 9 connectors are sold separately or in the INFINIBAR Multi-Light Shaping Kit.
* The INFINIBAR PB12 8-Light Kit includes 8 Straight Connectors. Remaining 9 connectors are sold separately or in the INFINIBAR Multi-Light Shaping Kit.
Featuring 96 RGB light engines per foot, the pixel mapping INFINIBAR PB12 has industry-leading pixel density, second only to the Aputure MT Pro. Access 7 built-in Pixel FX, independently control the 24 pixels via Pixel Control on Sidus Link, or up to 1,024 pixels across multiple lights with Sidus Link’s all-new Magic Infinity FX feature, allowing you to shape, position, and adjust the length of your light in any way imaginable, giving you over 42 feet of creative lighting control right at your fingertips.
TECHNICAL SPECIFICATIONS
(In Single Pixel Mode)
DIMENSIONS
WEIGHT
WHAT'S IN THE BOX
- CCT 2,000K - 10,000K
- CRI 96+
- TLCI 98+ CQS 96
- SSI (D56) 74
- SSI (Tungsten) 85
- TM-30 RF (Average) 94
- TM-30 RG (Average) 103
- Color Chipset RGBWW
- Single Pixel Mode Light Engine RGBWW
- Multi Pixel Mode Light Engine RGB
- Beam Angle (Half-Peak) 120º
- Lumens 2,077lm
- Max Power Output 27W
- Max Power Consumption (Fixture) 36.5W
- Max Power Consumption (Power Supply) 40W
- Operating Voltage & Current (Fixture) 24V, 1.8A
- Operating Voltage & Current (Power Supply) 100V-240V 50/60Hz, 1.5A
- Battery Capacity 7.4V, 8000mAh, 59.2Wh
- Battery Life Approx. 80 Mins @ Max Output
- Charge Time Approx. 120 Mins (24V/2.67A)
- Pixel Mapping 96 Pixels
- Operating Temperature -10ºC ~ 45ºC / 14ºF ~ 113ºF
- Control Methods Sidus Link App, DMX/RDM, LumenRadio CRMX
- Wireless Operating Range (Bluetooth) ≤80m / ≤262.5ft
- Wireless Operating Range (LumenRadio) ≤100m / ≤328.1ft
- IP Rating IP 20
- Screen Type OLED
- Firmware Upgradeable Sidus Link, USB-C
- Cooling Method Passive Cooling
- Mounting INFINIBAR Rail
- Est.LED Lifetime (L70) 50,000 Hours
- Est. Color Shift Over Lifetime 2% Over 6,000 Hours
- Certifications CE, FCC, KC, NCC, ROHS, RCM, ICES, UKCA, PSE
- Fixture 120.4 x 4.5 x 4.3cm / 47.4 x 1.77 x 1.69in
- Fixture + Spacer 120.4 x 4.5 x 5.2cm / 47.4 x 1.77 x 2.05in
- AC Power Supply 12.0 x 5.3 x 3.2cm / 4.7 x 2.1 x 1.3in
- INFINIBAR Clamp 12.2 x 5.5 x 4.0cm / 4.8 x 2.2 x 1.6in
- Case 127.7 x 13 x 12.5cm / 50 x 5.1 x 4.9in
- Fixture 1.96kg / 4.31lbs
- Fixture + Spacer 2.09kg / 4.61lbs
- AC Power Supply 0.49kg / 1.08lbs
- INFINIBAR Clamp 0.27kg / 1.08lbs Total 26.8kg / 59.08lbs
- 8x INFINIBAR PB12
- 8x 48W DC Power Adapter (3m)
- 1x AC Locking Power Cable (4m)
- 8x AC Locking Power Cable (1.5m)
- 1x 330W Power Adapter with 8-Way Splitters
- 16x Magnetic Spacer
- 8x INFINIBAR Clamp to Baby Pin Adapter
- 8x INFINIBAR Straight Connector
- 1x 5mm Hex Wrench
- 8x INFINIBAR PB12 45º Light Control Grid
- 1x Flight Case
| Beam Angle: | 120° |
|---|---|
| Certifications: | CE, FCC, ICES (Canada), KC (Korea), PSE (Japan), RoHS, UKCA (UK) |
| Colour temperature: | 2000K - 10000K |
| Connectivity: | CRMX |
| Protection Class / IP Rating: | IP 20 |
